Touchscreen Coding Sealer

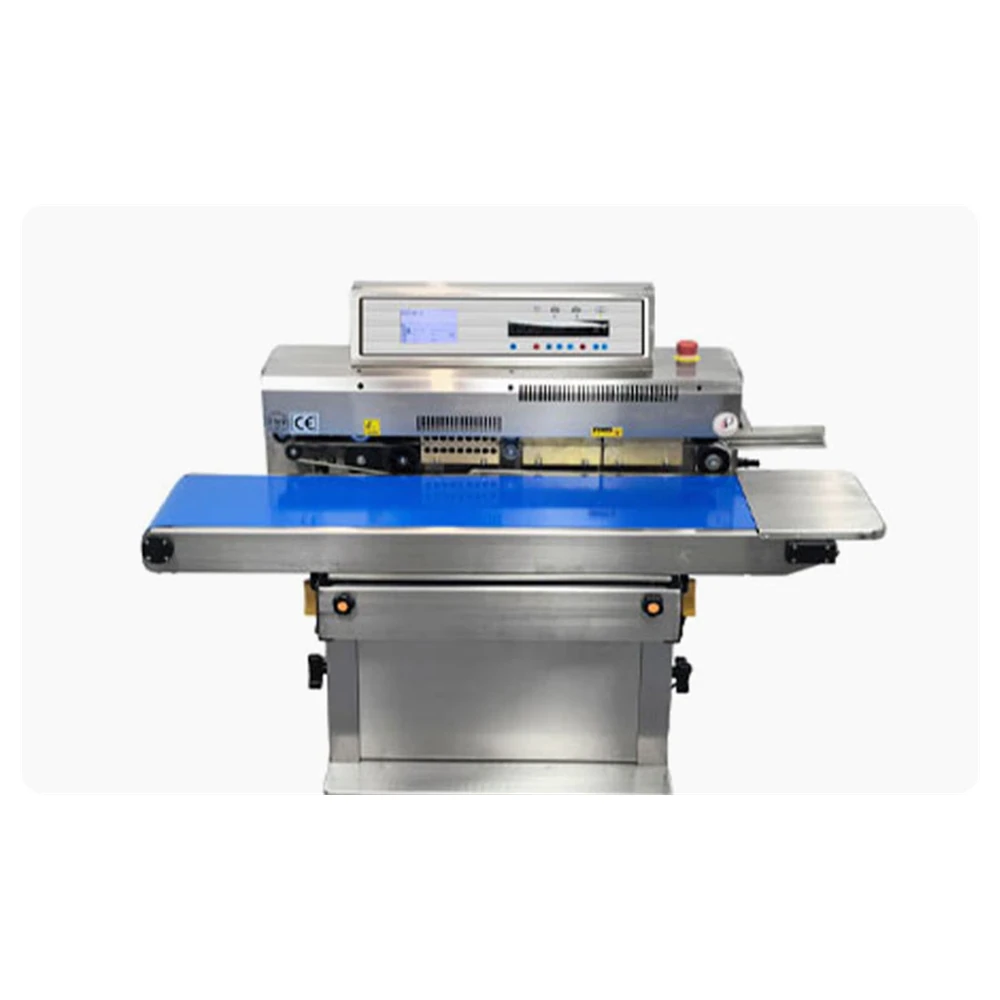

SMT-280 Inkjet Coding Sealing Machine

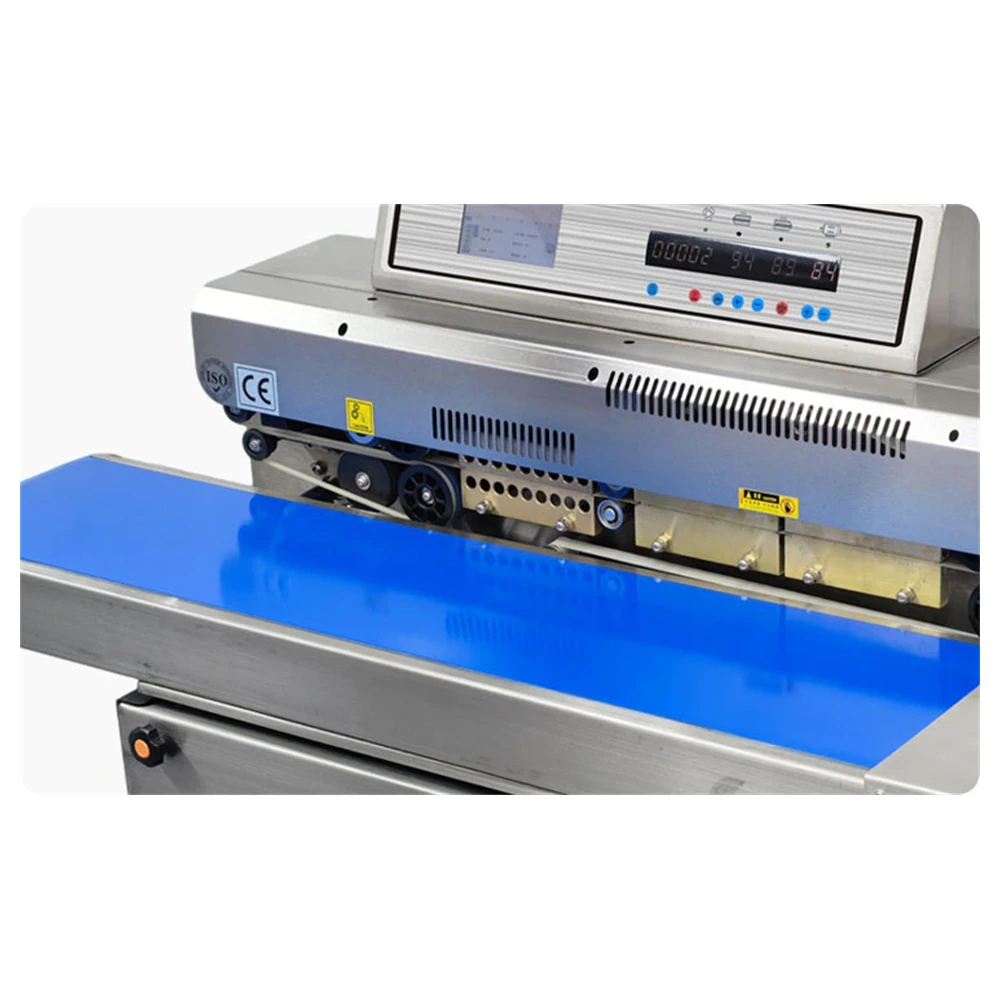

A sealing machine with a computer inside it. The SMT-280 runs a quad-core Linux platform on a 5-inch IPS touchscreen, sealing at 0–25 m/min with a 10 mm seal width while printing the code in the same pass. Choose inkjet, steel stamp or ink printing on the same mechanical platform, and carry up to 15 kg of product on the conveyor.
0–25m/minSealing speed
5inIPS touchscreen
15kgConveyor load
4Coding builds
Overview
Sealing and Coding as One Operation
Traditional lines seal the bag on one machine and print it on another, which means two operators and two chances for the code to land in the wrong place. The SMT-280 seals and prints in the same pass, and holds the print settings so the next batch starts where the last one finished.
- Instant print and sealThe controller drives the print head directly, so the code is applied as the seal is formed.
- Stored settingsProduct recipes stay in the system, so switching batches is a menu selection rather than a recalibration.
- One-tap languageThe interface switches language in a single action, and any language can be added.
- Cooled before printA high-airflow fan sets the sealed texture before printing, keeping the impression clean.
Seal & Print Path
From Bag Mouth to Finished Pack
The controller times the print head to the belt, so the code lands in the same place on every bag whatever the line speed.
01
Feed
The bag is placed on the adjustable conveyor table and carried into the sealing head at up to 25 m/min.
02
Heat
The self-lubricating copper heating block, held between 0 and 300 °C, fuses the bag mouth.
03
Cool
The high-airflow fan sets the sealed texture quickly so the code is printed onto a stable surface.
04
The selected head, inkjet, steel stamp or ink printing, applies the code and the machine counts the pack.
Technical Data
SMT-280 Datasheet
All figures are taken from the model datasheet and listed as supplied.
| Parameter | SMT-280 |
|---|---|
| Model Family | SMT-280P / SMT-280CQ / SMT-280M / SMT-280 |
| Power Supply | 220V / 50 Hz, 110V / 60 Hz |
| Power Consumption | 1650 W / 1600 W / 1650 W / 1600 W |
| Sealing Speed | 0–25 m/min |
| Sealing Width | 10 mm |
| Temperature Range | 0–300 °C |
| Conveyor Load | Up to 15 kg per item |
| Transport Dimensions | 1290 × 545 × 1000 mm |
| Gross Weight | 98 kg |
| Processor | Quad-core, up to 1.5 GHz |
| Display | 5-inch IPS high-definition touchscreen |
| Operating System | Open-source Linux |
| Heating Tube | 304 stainless steel, removable |
| Safety | Multi-layer insulated circuit |
Mechanical structure and conveyor are common to all four builds. Choose the coding head (inkjet, steel stamp or ink printing) per order.
Coding Options
Same Machine, Four Marking Methods
The seal geometry does not change across the range. What changes is how the code is applied, and that decides your running consumables.
| Build | Marking Method | Power | Consumables | Best For |
|---|---|---|---|---|
| SMT-280P | Inkjet printing | 1650 W | Ink and cartridge | Variable multi-line data |
| SMT-280CQ | Inkjet printing | 1600 W | Ink and cartridge | High-speed variable dating |
| SMT-280M | Steel stamp | 1650 W | Steel type only | Permanent embossed data |
| SMT-280 | Ink printing | 1600 W | Ink wheel | Economical fixed date and batch |
All four builds share the same 0–25 m/min sealing speed, 10 mm seal width and 0–300 C temperature range. Power varies slightly with the marking head fitted.
Advantages
Where the Machine Earns Its Keep
Details that matter on a line where bags arrive all day and the code must never be missed.
Proper Computer
A quad-core processor and IPS touchscreen give a real interface, not a row of dials.

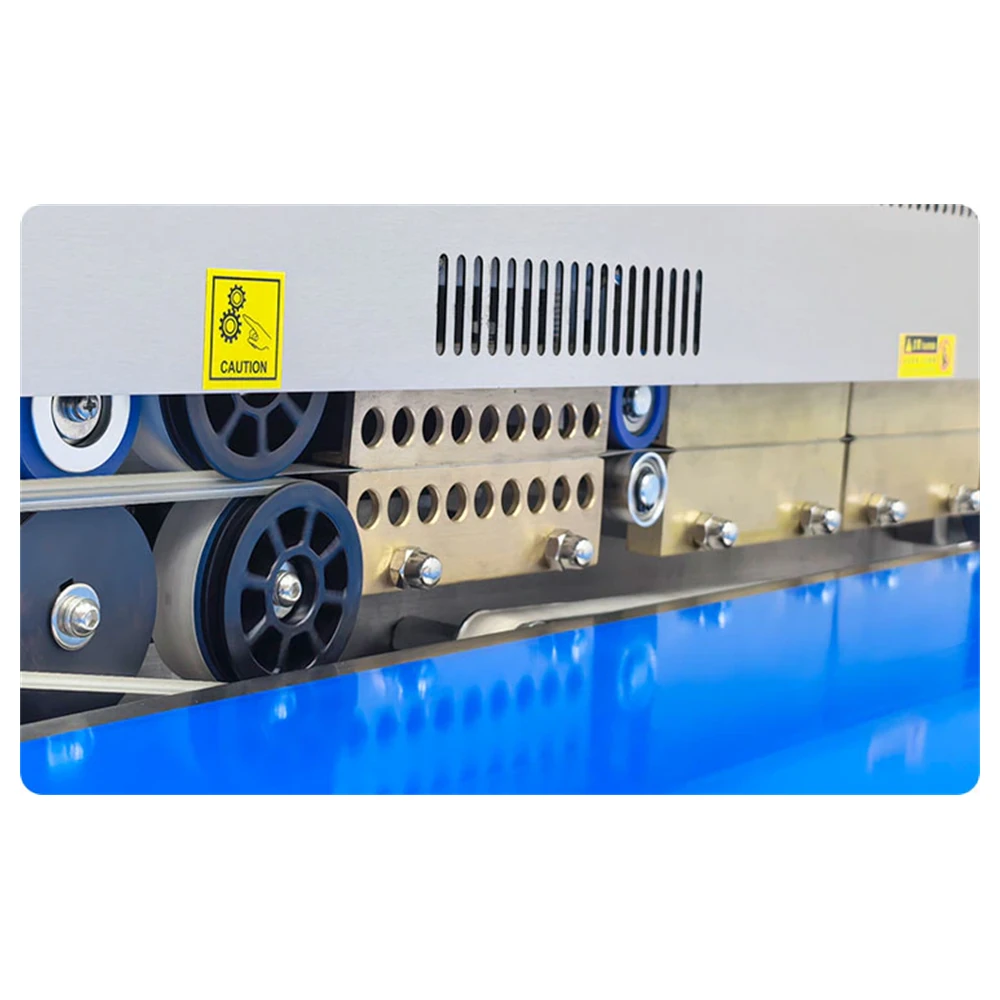

Copper Heat Path
Self-lubricating copper heating and cooling blocks move heat in and out evenly for a clean seal every cycle.

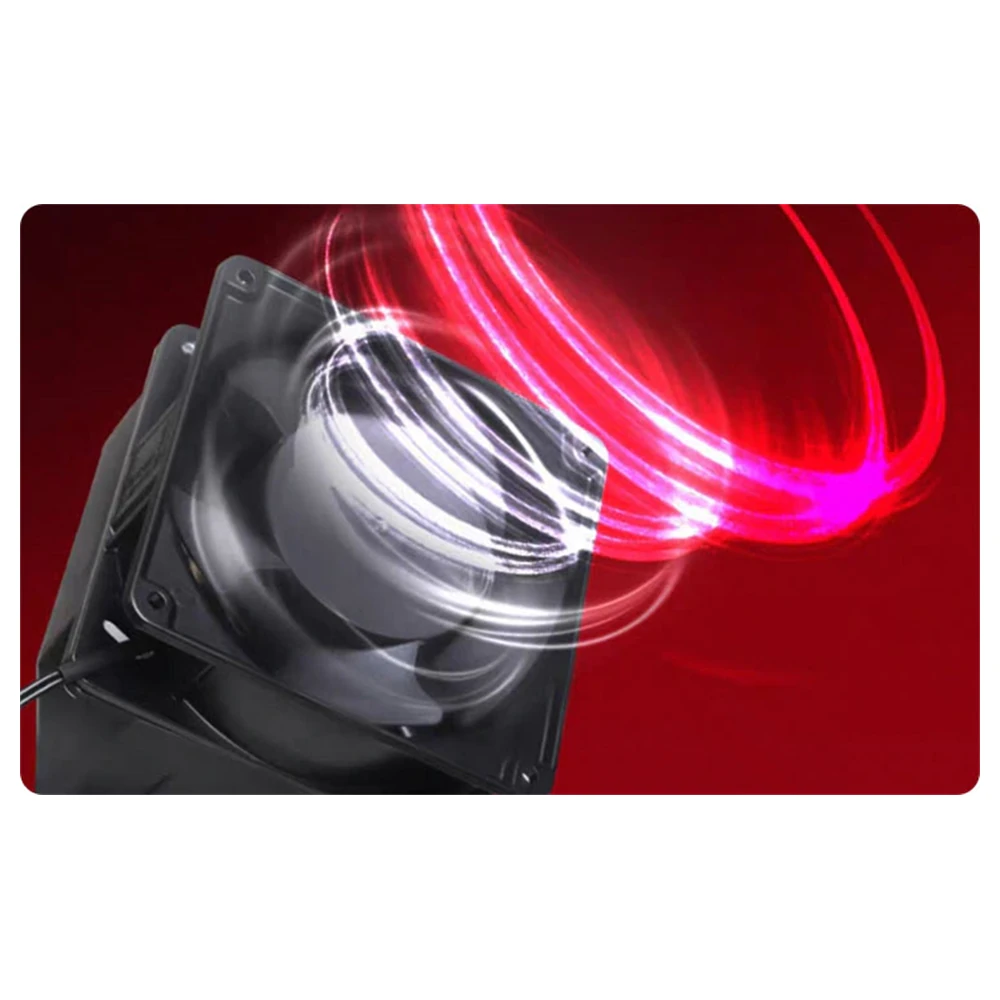

Fast Cooling
The upgraded high-airflow fan sets the seal texture quickly, which keeps the printed impression sharp.

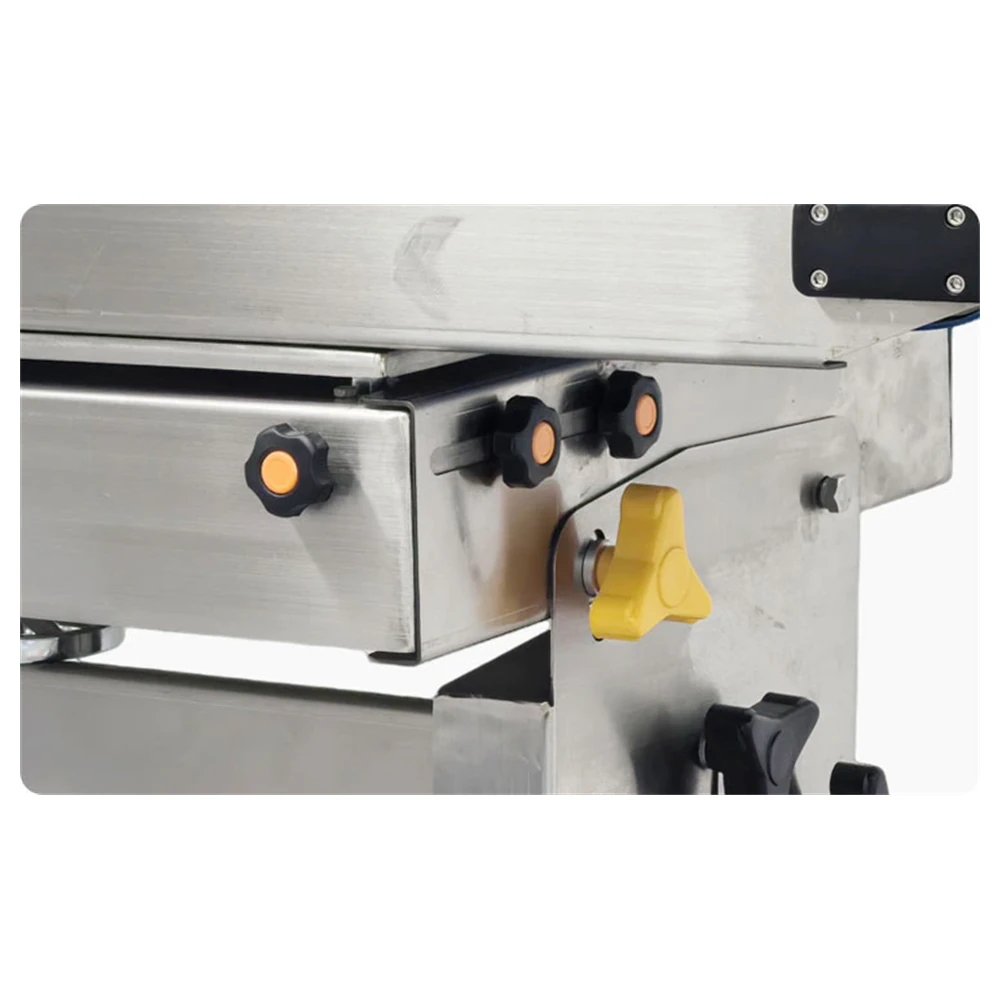

Adjustable Table
The conveyor table moves forward, back, up and down so it suits the product rather than the other way round.

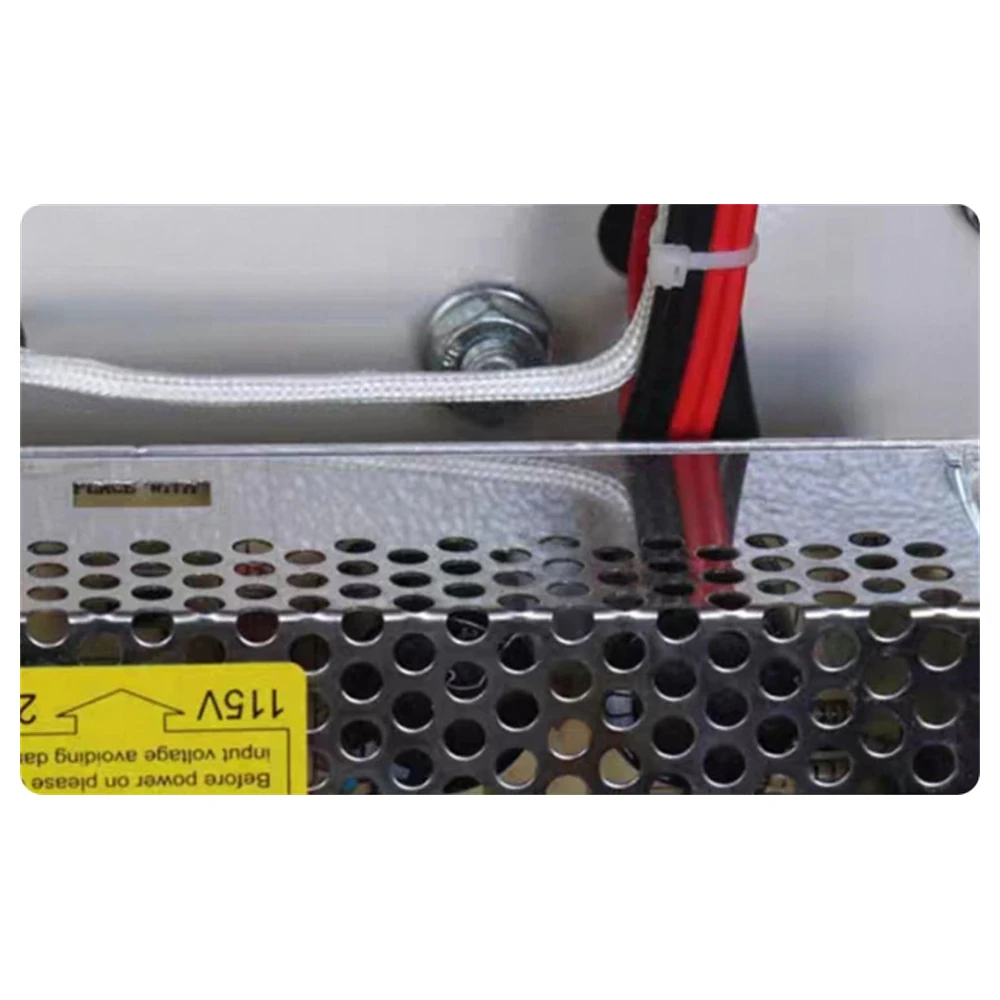

Insulated Circuit
Multi-layer insulation means a loose connection does not expose live parts, protecting the operator.
Serviceable Parts
The 304 stainless heating tube is removable and the belt is a quality grade, so upkeep is straightforward.
Key Numbers
The SMT-280 in Four Figures
25m/minMaximum sealing speed
1.5GHzProcessor clock
15kgConveyor load
300°CTemperature ceiling
Applications
Built for Mixed Bag Types on One Line
From foil to kraft paper, the same machine seals each bag type and prints the code it needs.
Food & Agriculture
Foil, composite, kraft and fresh-keeping bags for food and agricultural products.
Pharmaceutical & Chemical
Multi-line batch, expiry and licence data printed as each bag is sealed.
Tea, Coffee & Lubricant
Tea bags, shrink film packs and lubricant pouches coded without stopping the line.
Ordering & Support
What Comes With Every SMT-280
Shipping
Heavy packing at 1290 × 545 × 1000 mm, shipped by express, air or sea.
Payment
T/T bank transfer and other agreed methods, with terms confirmed on the proforma invoice.
Warranty
A 2-year warranty covers parts and labour, with heating tubes and belts supplied quickly.
Software Setup
Help configuring print layouts, languages and stored recipes on the touchscreen.
- Lead timeAbout 5 working days for standard builds, plus roughly 4–6 working days in transit by express.
- Volume termsAgreed per order against quantity and destination — send your target volume and port.
- OEM & ODMNameplate, interface language and splash screen can carry your brand.
- Sample testSend your bag and we will return a sealed and coded sample with the settings used.
FAQ
SMT-280 Questions
Four builds are offered on the same platform. The SMT-280P and SMT-280CQ use inkjet printing, the SMT-280M uses a steel stamp, and the standard SMT-280 uses ink printing. All four seal at the same speed and width; only the marking head and its consumables differ.

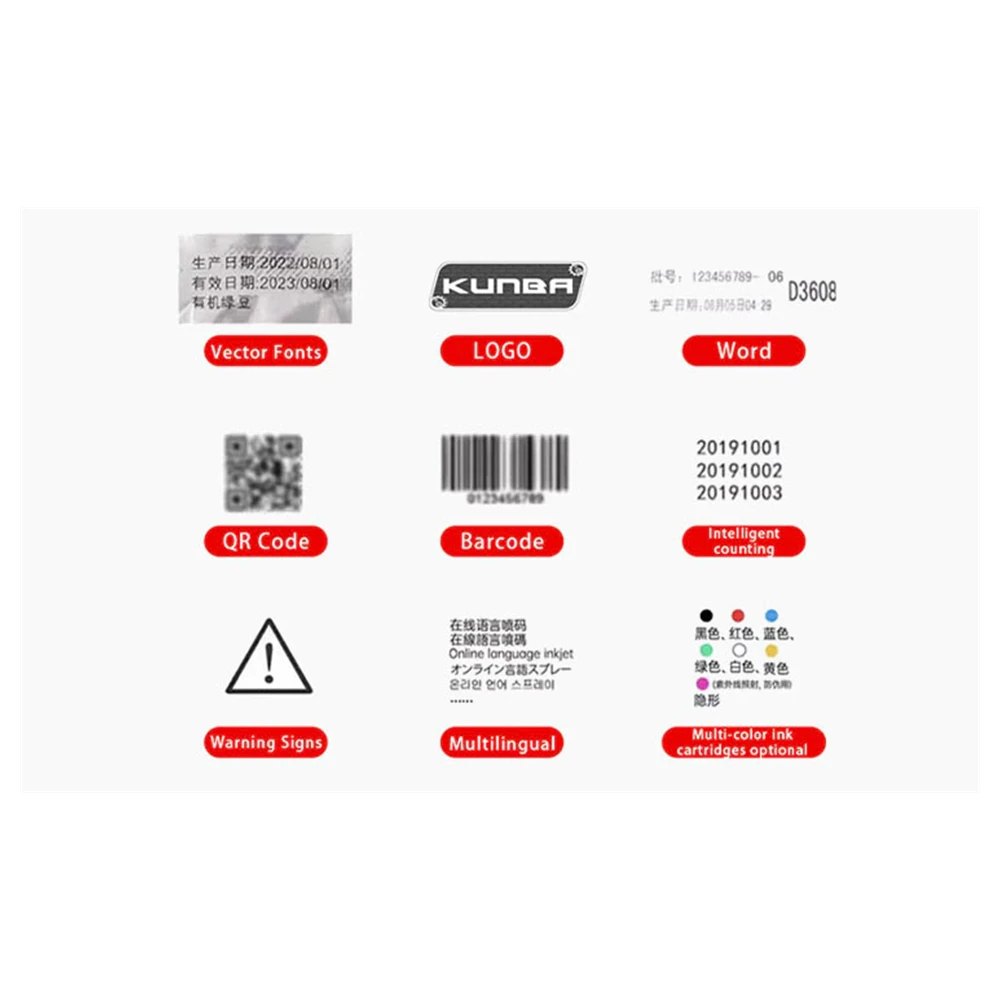

A quad-core processor running at up to 1.5 GHz drives a 5-inch IPS touchscreen on an open Linux system. That is what allows instant print-and-seal, flexible coding content, stored print settings and one-tap switching of the interface language, including custom languages.

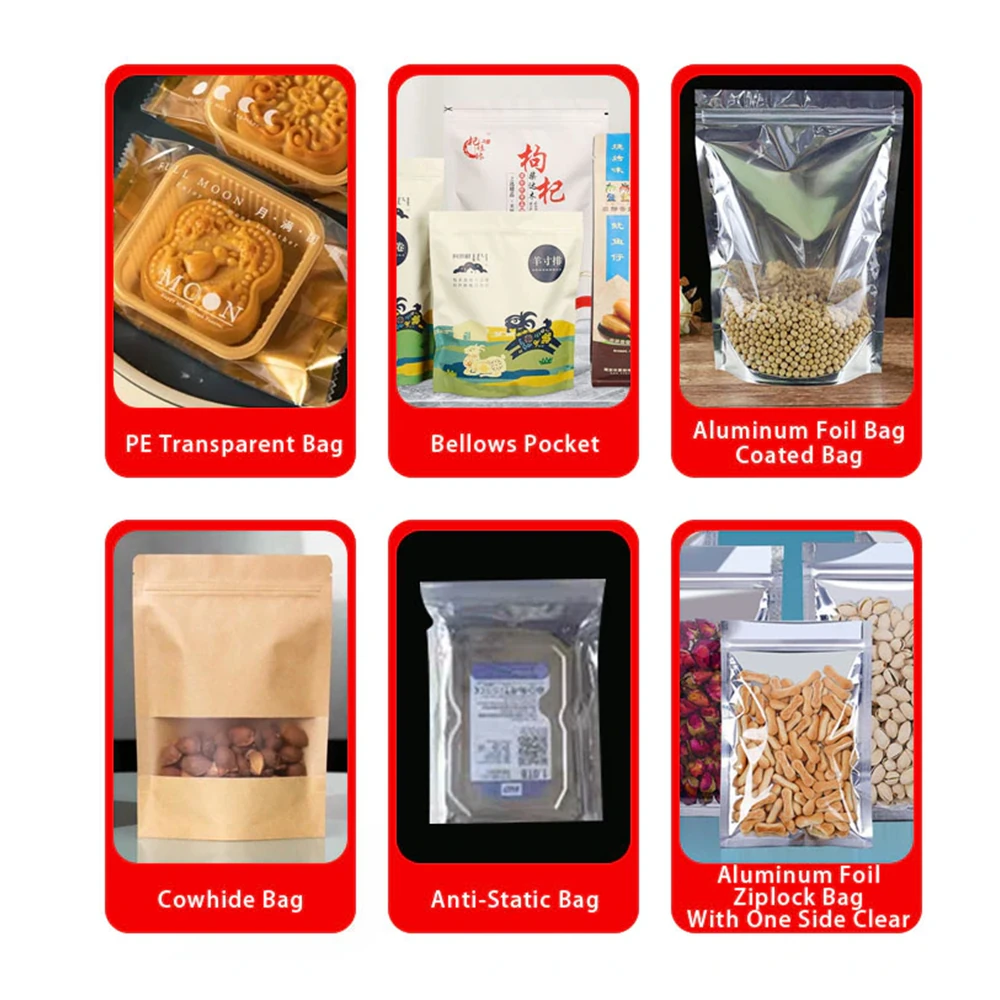

It handles heat-seal packaging bags including aluminium foil bags, plastic bags, composite bags, kraft paper bags, fresh-keeping bags, tea bags and shrink film bags, with a conveyor that carries up to 15 kg per item. That range covers food, pharmaceutical, chemical, agricultural and lubricant packing.
A high-airflow fan cools the sealed mouth as it leaves the heating zone, so the texture pressed at the seal sets quickly. Cooling before printing is what keeps the impression sharp and stops the bag smearing as it travels on.
The circuit uses multiple layers of insulation, so a loose connection does not expose live conductors. The heating tube is made from removable 304 stainless steel, and the conveyor table adjusts forward and back as well as up and down to suit the product size.
The machine is assembled and tested before dispatch and ships in heavy packing at 1290 x 545 x 1000 mm. Standard production is about 5 working days with express transit of roughly 4 to 6 working days. Heating tubes, belts and print consumables are supplied as spares, and a 2-year warranty applies.
