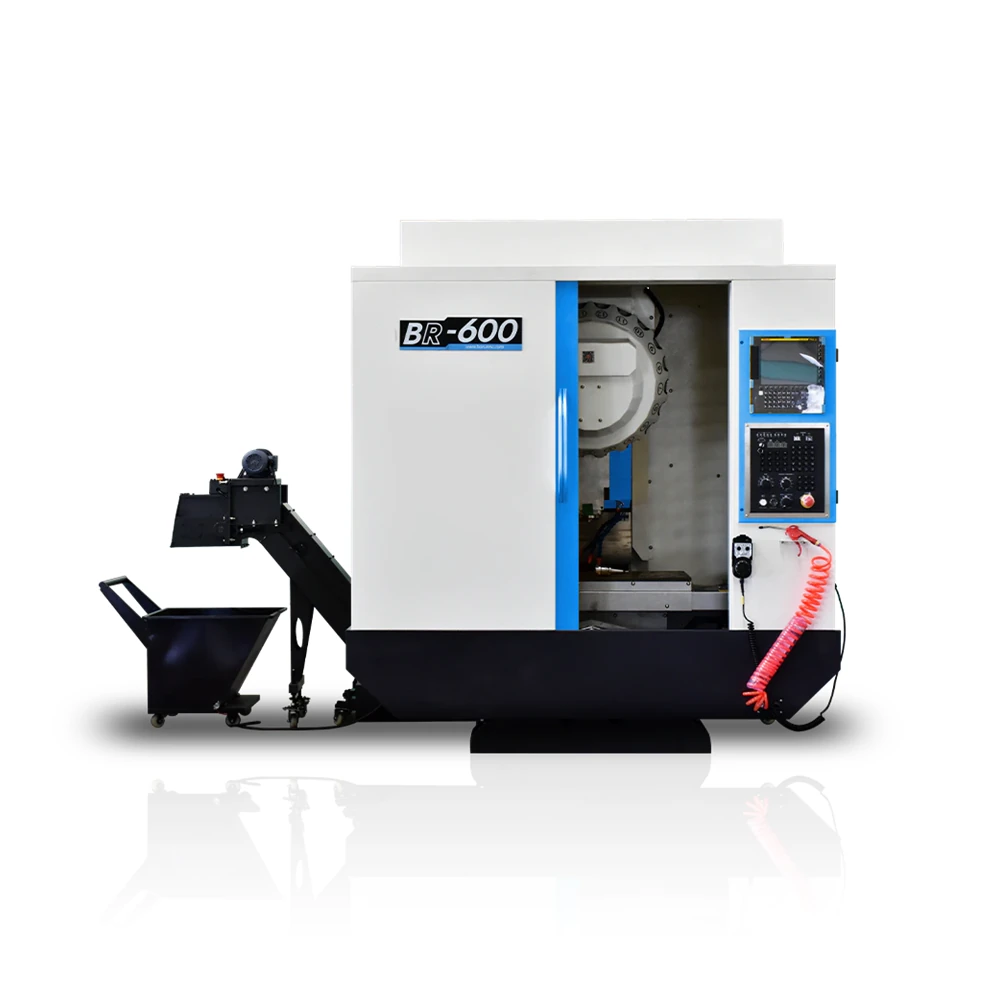

Drilling & Tapping Center BR600
High-speed 20,000 rpm spindle and a 1.6 s tool change for drilling, tapping and light milling of aluminium, electrodes and small steel parts.
View details
Metal Cutting Machine Tools
CNC Milling Machines
Seven milling machines cover the distance between a 400 mm electronics part and a three-tonne machine frame. A drilling and tapping centre runs thousands of holes per shift, vertical machining centres and vertical mills cut moulds and metal components inside a column, and gantry mills carry the workpiece on a fixed bed under a moving bridge. Pick the architecture first, then the travel, spindle and tool magazine.
7Models in the range
600–4000mmX-axis travel
BT40/BT50Spindle taper
24moComponent warranty
Three Architectures
Three Machine Architectures, One Milling Family
Drilling and tapping centres, vertical machining centres and gantry mills all rotate a tool against a workpiece, but they move very differently — and that decides which parts each one turns into profit.
- Drilling and tapping centreA high-speed spindle on a fast, compact frame. Tapping, drilling and light milling of aluminium and small steel parts at 20,000 rpm with a 1.6 s tool-to-tool change.
- Vertical machining centreThe table travels in X and Y under a column-mounted spindle, with Z on the head. Rigid, fully enclosed and built for moulds and machined components in the 400–800 mm class.
- Vertical CNC milling machineA quill-free, bridge-style column with hardened box ways. Fewer options than a machining centre but very stiff for heavy, interrupted cuts on castings and jigs.
- Gantry millThe workpiece sits on a fixed bed while the bridge, cross rail and spindle head move over it. Travel reaches 4000 mm and the table accepts several tonnes.
Model Range
Seven Milling Machines, Ranked by Capacity
Listed from the fastest small-part machine to the largest gantry build. Every model is available with a choice of CNC control and tooling package.

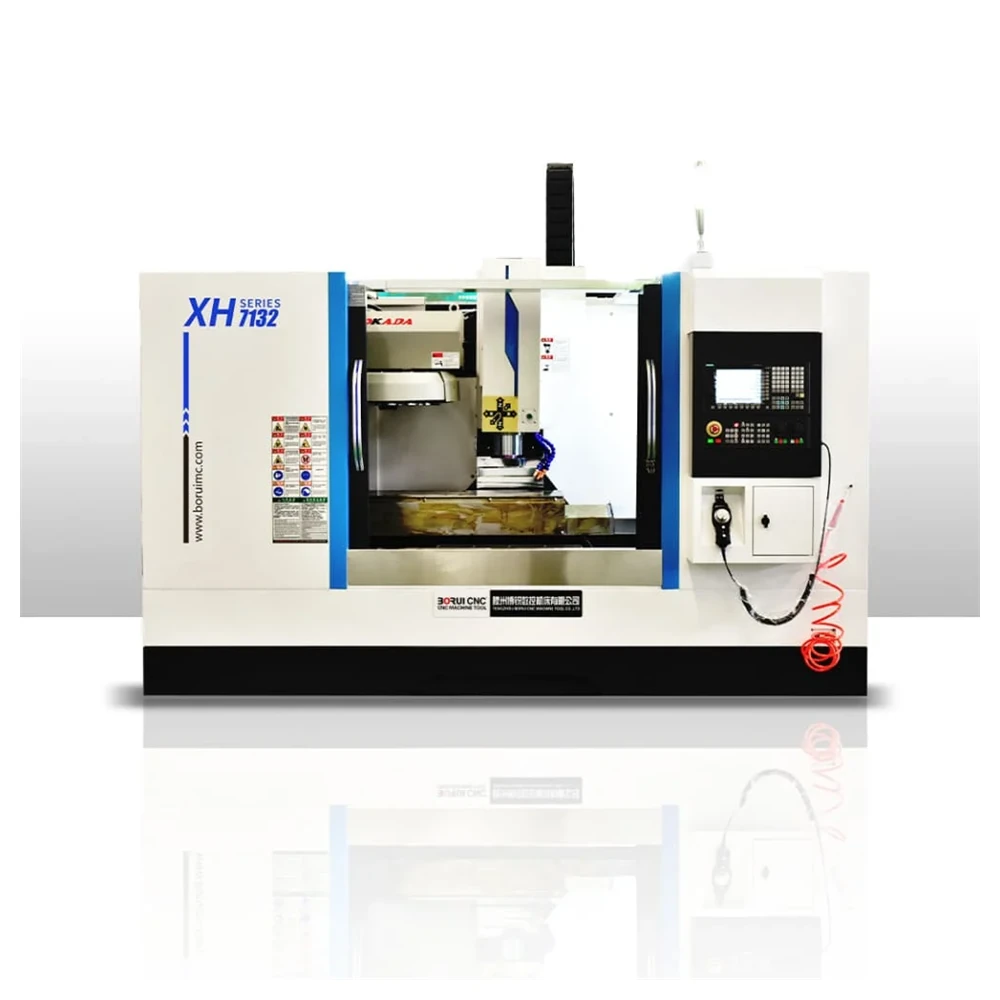

Vertical CNC Milling Machine XH7132
Bridge-column vertical mill with hardened box ways and pre-tensioned ball screws, offered with an optional 10/12-tool umbrella ATC.
View details

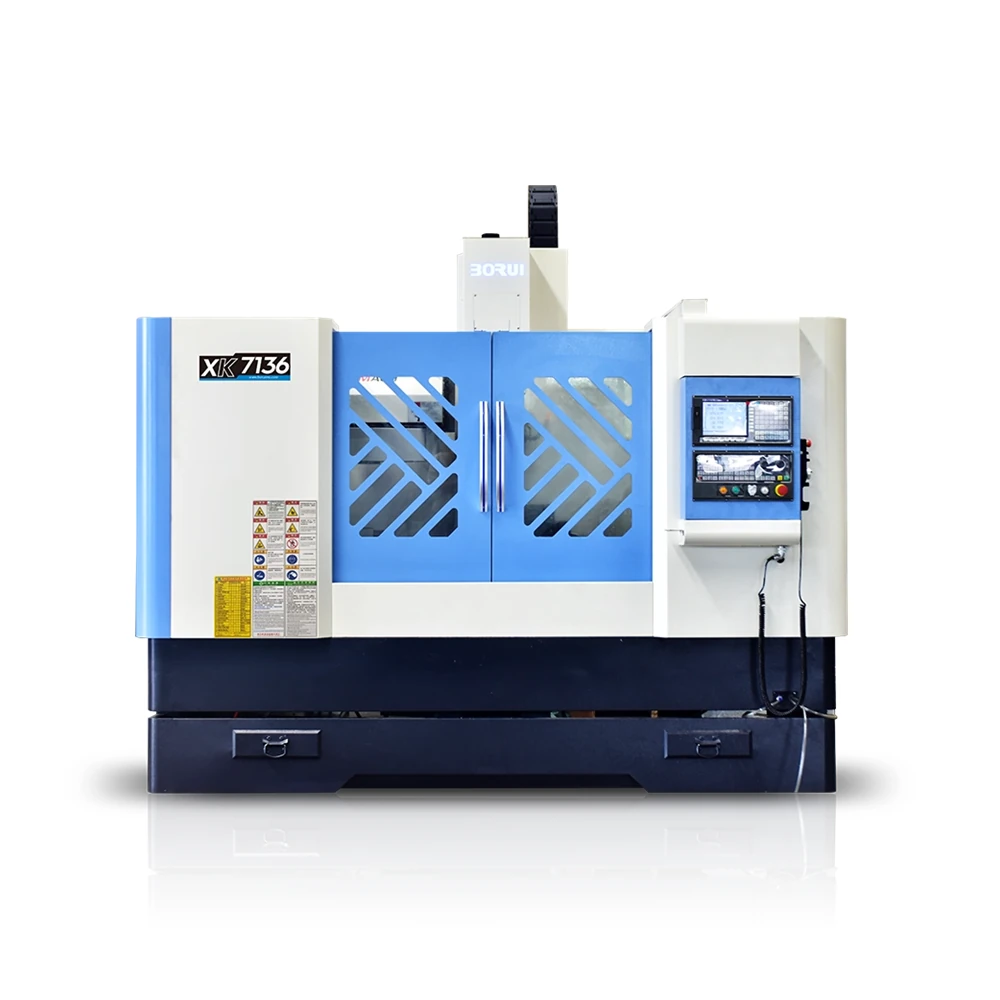

Vertical CNC Milling Machine XK7136
Longer 1250 mm table and 860 mm X travel for elongated parts, with a servo spindle, 10,000 rpm top speed and 16-station umbrella ATC option.
View details
Vertical Machining Center VMC650
Compact four-axis machining centre for moulds and small steel components, with HIWIN linear guideways and a 16-station disc magazine.

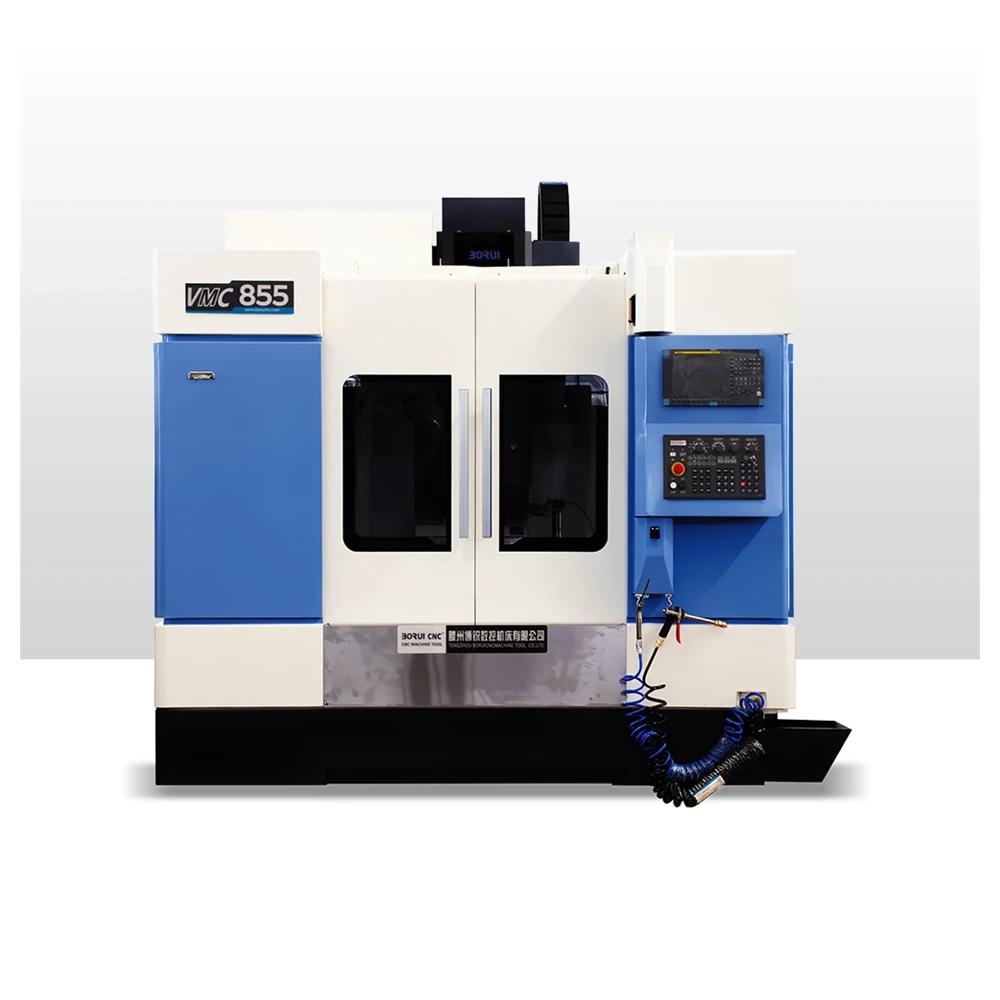

View detailsVertical Machining Center VMC855
Wider 1000×500 mm table and a 24-station disc magazine with a 1.9 s change, ready for a fourth or fifth axis for multi-face work.
View details

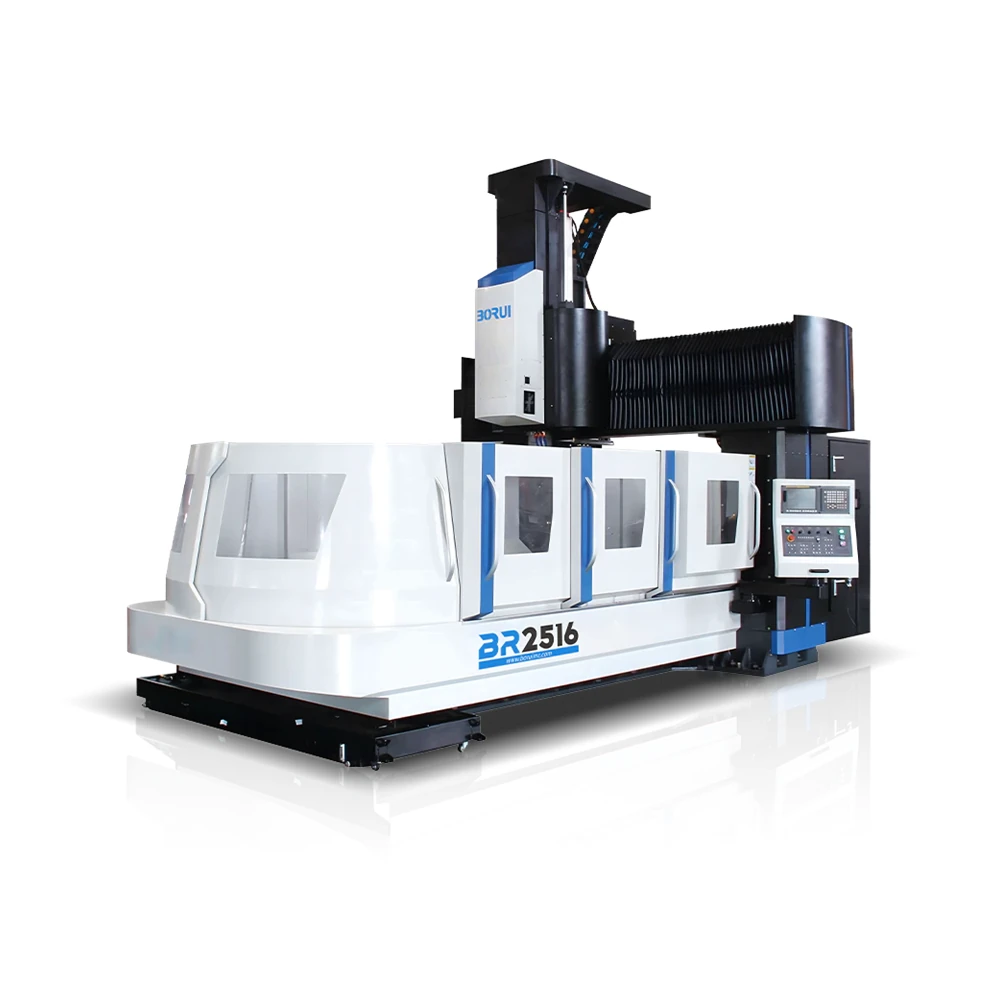

Gantry CNC Milling Machine BR2516
Double-layer resin-sand casting with a 2500×1300 mm bed carrying 5 t, a 24-station disc ATC and 15/18.5 kW of BT50 spindle power.
View details

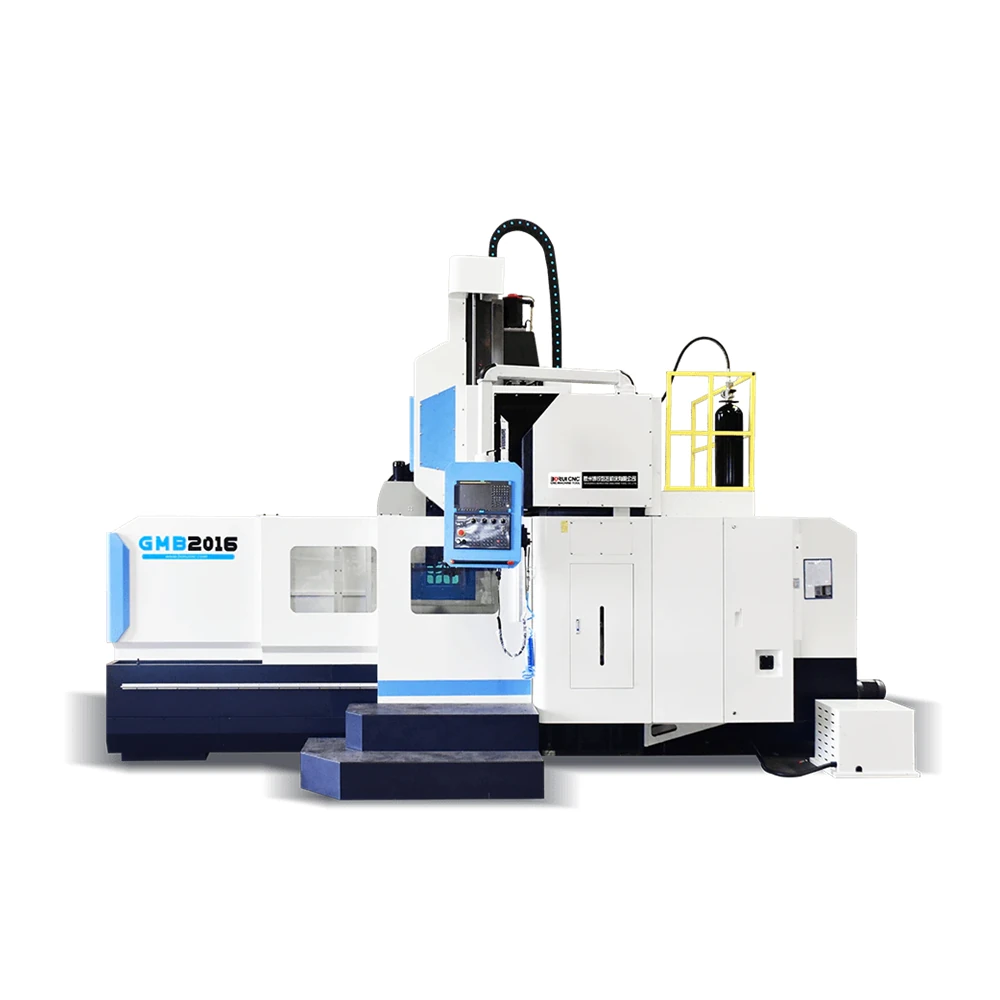

Gantry CNC Milling Machine GMB2016
Moving-column gantry with 3000×1800 mm and 4000×2070 mm builds, a 24-arm ATC, gas-balance cylinder and up to 22 kW BT50 spindle.
View details
Selection Matrix
All Seven Models, Parameter by Parameter
Every figure comes straight from the machine datasheet. Read down a column to size one model, or across a row to compare the range.
| Parameter | BR600 | XH7132 | XK7136 | VMC650 | VMC855 | BR2516 | GMB2016 |
|---|---|---|---|---|---|---|---|
| Machine type | Drilling & tapping centre | Vertical mill | Vertical mill | Vertical machining centre | Vertical machining centre | Gantry mill | Gantry mill |
| X travel | 600 mm | 630 mm | 860 mm | 650 mm | 800 mm | 2500 mm | 3000 mm |
| Y travel | 400 mm | 400 mm | 450 mm | 400 mm | 550 mm | 1650 mm | 2200 mm |
| Z travel | 350 mm | 500 mm | 550 mm | 500 mm | 550 mm | 750 mm | 1000 mm |
| Table size | 700×420 mm | 1000×320 mm | 1250×360 mm | 800×400 mm | 1000×500 mm | 2500×1300 mm | 3000×1800 mm |
| Table load | 300 kg | 300 kg | 460 kg | 400 kg | 500 kg | 5000 kg | — |
| Spindle speed | 20,000 rpm | 8000 rpm | 10,000 rpm | 8000 rpm | 8000 rpm | 6000 rpm | 30–6000 rpm |
| Spindle taper | — | BT40 | BT40 | BT40 | BT40 | BT50 | BT50 |
| Spindle power | 3.7/5.5 kW | 5.5 kW | 5.5 kW | 5.5 kW | 7.5 kW | 15/18.5 kW | 18 kW |
| Tool magazine | 16 (21 opt.) | 10/12 opt. | 16 opt. | 16 | 24 | 24 disc | 24 arm |
| Positioning accuracy | ±0.003/300 | ±0.005 mm | ±0.008 mm | ±0.008 mm | ±0.008 mm | 0.010/1000 | 0.022 mm |
| Machine weight | 3500 kg | 2800 kg | 3000 kg | 4000 kg | 5000 kg | 19,000 kg | 30,000 kg |
Values are transcribed from the parameter tables of each datasheet. The VMC650 description text references a 24-station magazine while its parameter table lists 16, and the BR600 datasheet shows both a dual spindle-speed figure and two spindle-power ratings; the parameter tables are used above. Confirm travel, spindle option and control before ordering.
Industries
Where These Milling Machines Run
One platform serves very different shops. These are the four most common production patterns.
Electronics & Moulds
Copper electrodes, phone moulds, resin patterns and precision mould inserts cut at high spindle speed with AI contour control for a fine surface finish.
Automotive & Communication
Brackets, housings, connectors and die-cast components machined four or five faces in one setup, with deburring and chamfering of magnesium and aluminium castings.
Heavy Frames & Plates
Machine beds, press frames, mould bases and structural plates milled, drilled and bored on the gantry bed without re-clamping or moving the workpiece.
Job Shops & Tooling
Jigs, fixtures, dies and general subcontract work where one machine has to move between small batches of different parts with fast changeover.
Energy & Rail
Large weldments, gearbox housings and track components finished on a gantry mill where the bed, not a table, carries the weight.
Medical & Instrumentation
Small stainless and aluminium instrument parts needing tight tolerances, fine finishes and repeatable multi-hole drilling and tapping.
FAQ
CNC Milling Machine Questions
Match the architecture to the part. Small aluminium and electronic housings needing many holes and threads suit a drilling and tapping centre such as the BR600. General metal parts and moulds up to roughly 800 mm suit a vertical machining centre such as the VMC650 or VMC855, or a vertical milling machine such as the XH7132 or XK7136. Large plates, frames and moulds that will not swing inside a column machine suit a gantry mill such as the BR2516 or GMB2016. Send a drawing and we will confirm travel, spindle and tooling.
A vertical machining centre carries the workpiece on a moving table inside a column and travels 400 to 800 mm, so it is compact and fast for small to medium parts. A gantry mill fixes the workpiece on a large bed and moves the cross rail and spindle head across a bridge, so the table can carry several tonnes and the travel reaches 2500 to 4000 mm. Choose the vertical machine for speed on small parts and the gantry for size and weight.
The vertical machining centres, vertical milling machines and gantry mills use BT40 or BT50 tapers depending on the model, and the drilling and tapping centre uses a high-speed spindle. Tool magazines run from 10 and 12 stations on small mills to 16 and 24 stations on the machining centres and gantry mills, with both disc and arm changers available. We match taper and magazine capacity to your tool list.
Positioning accuracy ranges from plus or minus 0.003 mm per 300 mm on the BR600 drilling and tapping centre to plus or minus 0.008 mm on the vertical machining centres and vertical mills, and 0.010 mm per 1000 mm on the gantry mills. Repeatability is tighter still. Every machine is geometrically tested with a laser interferometer before packing, and the test record ships with the machine.
Standard models ship in 15 to 30 working days after deposit, and customised travel, spindle or control configurations take 30 to 45 working days. We provide English manuals, parameter files, live video commissioning and operator training, so most teams are cutting parts shortly after the machine is levelled and powered up.
Yes. Travel, spindle power and speed, spindle taper, tool magazine capacity, control system, table and clamping method, voltage and machine colour can all be specified, and we build OEM and ODM units under your brand. A customised machine is confirmed against a signed drawing and build sheet before production starts, and the first article is approved by you.
