Four-Axis Gantry Router

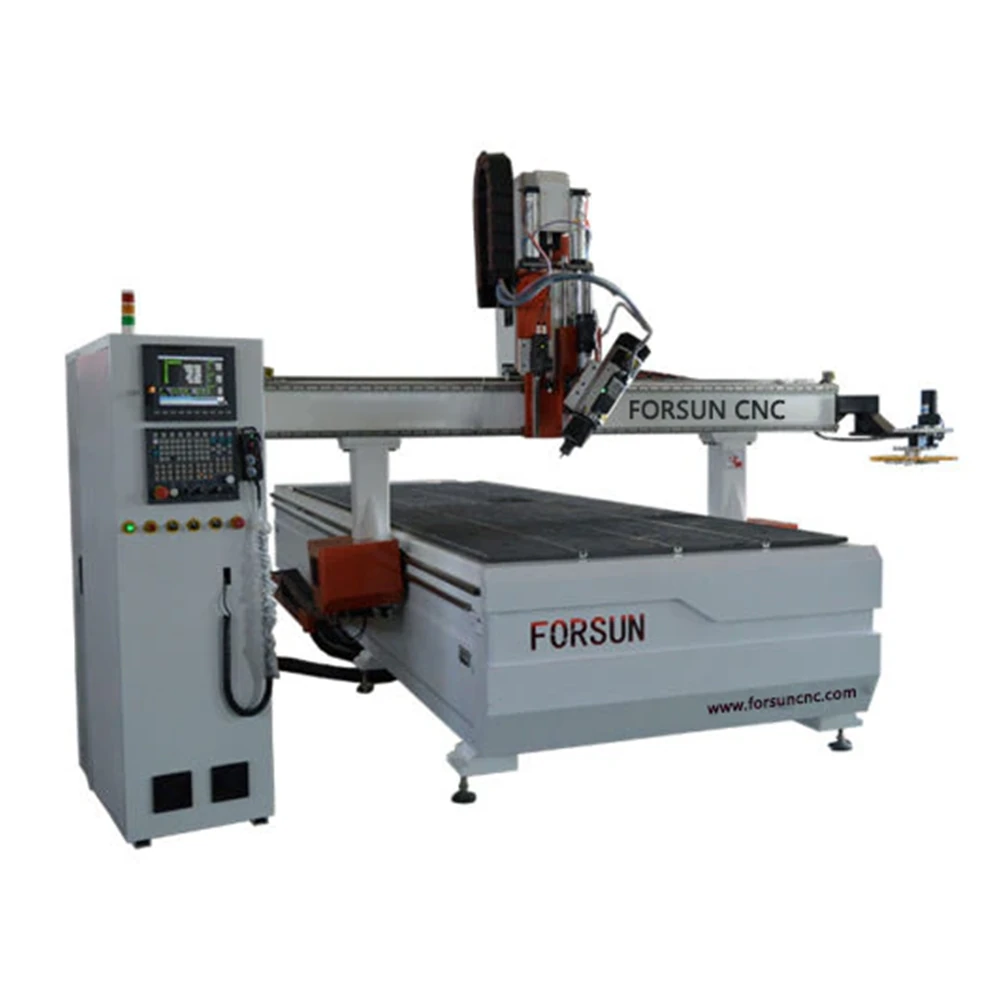

Four-Axis CNC Wood Router FS1530A
A flat-bed router can only cut what the tool can reach from above. Add a rotary fourth axis and the head turns into the workpiece, so curved, cylindrical and fully three-dimensional forms become machinable on the same gantry. The FS1530A combines a 1500 by 3000 mm table, a rotary head turning to 90 degrees either way, an Italian HSD 9 kW automatic tool change spindle and Yaskawa servo drives under Syntec control.
1500×3000mmWorking area
±90°Rotary head
9.0kWATC spindle
24,000rpmSpindle speed
Fourth Axis
What the Fourth Axis Actually Adds
A three-axis router moves the tool in X, Y and Z. Every surface it produces has to be reachable from directly above. The fourth axis breaks that constraint by rotating the head, which is what unlocks cylindrical and sculpted 3D work.
- Cylindrical and curved surfacesWith the rotary head engaged, the tool follows the curve instead of stepping over it, so round and swept forms come out true.
- Full three-dimensional formsThe head turns to 90 degrees in each direction, allowing undercut and steep-wall machining that a vertical tool cannot reach.
- Large 3D surfacesThe 1500 by 3000 mm table takes big curved panels and sculpted shapes that would be split into sections on a smaller machine.
- Mould and pattern workDesigned around the mould industry — casting moulds, patterns and master models where the shape is not flat and not simple.
Signature Diagram
Rotary Head Map: From Flat Sheet to Full 3D
The same gantry serves four different machining modes depending on whether the fourth axis is engaged.
±90°Head rotation range
2D/2.5D/3DMachining functions
40,000mm/minMaximum rapid
0.03mmMachining accuracy per 300 mm
01
Flat Cutting
With the axis locked, the machine behaves as a conventional three-axis router for panel cutting, drilling and shallow engraving.
02
Relief Carving
2.5D and 3D relief work on flat stock, following the profile of a mould or decorative panel surface.
03
Curved Sweeps

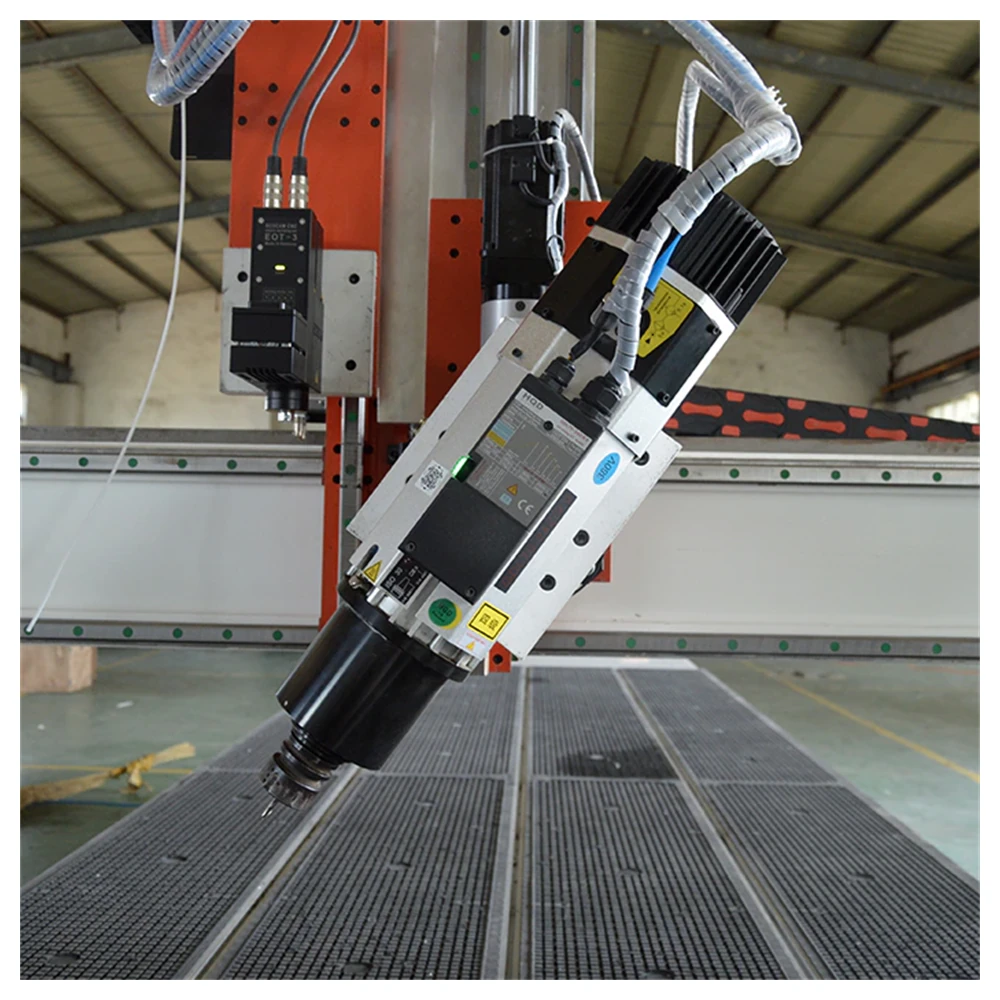

The head tilts to follow a curved surface, so swept and rounded forms are cut without stepping or faceting.
04
Cylindrical and 3D

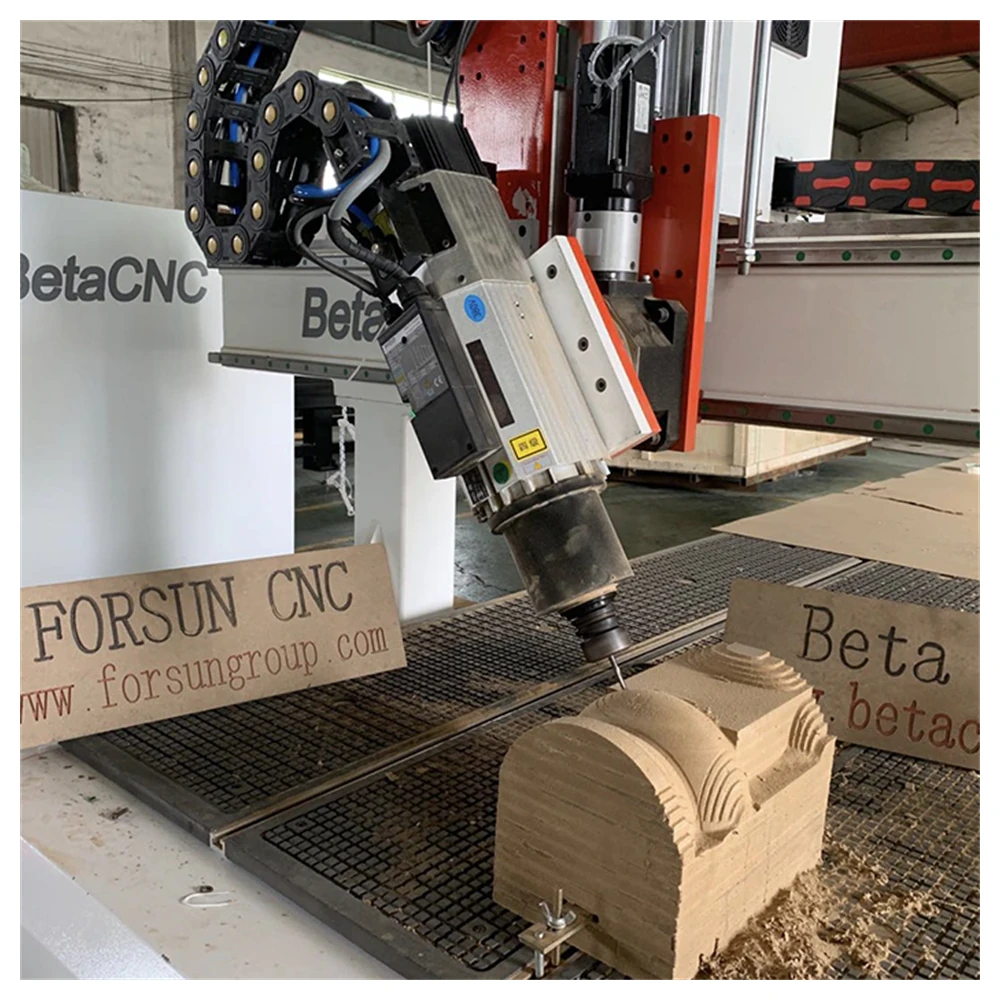

With a rotary fixture the axis turns the work, allowing true cylindrical machining and sculpted three-dimensional shapes.
Technical Data
FS1530A Technical Data
Transcribed from the machine parameter table.
| Parameter | Value |
|---|---|
| X and Y travel | 1500 × 3000 mm; options 1300 × 2500 mm, 2000 × 3000 mm |
| Z travel | 300 mm; options 400 / 500 / 600 mm |
| Rotary C axis | ±90° |
| Spindle | 9.0 kW ATC, 24,000 rpm, ER32 |
| Spindle options | 3.0 / 4.5 / 6.0 kW air-cooled at 18,000 rpm, ER20 / ER25 / ER32 |
| X and Y drive | German helical rack and pinion |
| Z drive | TBI ball screw |
| Guideways | HIWIN / THK linear rails and blocks |
| Axis motors | Stepper or AC servo |
| Body structure | Thickened welded steel frame, rigid gantry and side supports |
| Table | Aluminium T-slot or zoned vacuum table |
| Voltage | 380V / 50–60 Hz three phase; 220V option |
| Command language | G code and M code |
| Control | DSP / NC Studio / Mach3 / Syntec |
| Lubrication | Automatic |
| Tool setting | Automatic tool setter |
| Dust extraction | 3.0 kW system with two filter bags |
| Collets | ER20 / ER25 / ER32, 4 / 6 / 1/8 / 1/2 in |
| Maximum rapid | 40,000 mm/min |
| Maximum machining speed | 25,000 mm/min |
| Repeatability | ±0.04 mm / 300 mm |
| Machining accuracy | ±0.03 mm / 300 mm |
| Gross weight | 2500 kg |
| Packing size | 4000 × 2250 × 1950 mm |
The datasheet refers to this model as FS1530D-4 Axis in the heading and FS1530-4Axis in the parameter table; both names describe the same four-axis machine. Table size, Z travel and spindle choice are confirmed before production.
Spindle Options
Spindle and Collet Matrix
Four spindle ratings, two speed bands and three collet sizes. The choice follows from the material and the finish you need.
| Spindle | Power | Speed | Collet | Typical use |
|---|---|---|---|---|
| Air-cooled | 3.0 kW | 18,000 rpm | ER20 / ER25 | Light panel work and shallow engraving |
| Air-cooled | 4.5 kW | 18,000 rpm | ER25 / ER32 | General routing, drilling and grooving |
| Air-cooled | 6.0 kW | 18,000 rpm | ER32 | Deeper cuts and denser board stock |
| ATC, standard | 9.0 kW | 24,000 rpm | ER32 | Multi-tool 3D and mould work with automatic change |
Italian HSD Spindle
The standard 9 kW ATC spindle is an Italian HSD unit, chosen for power and speed stability on long carving cycles.
Disc Tool Magazine

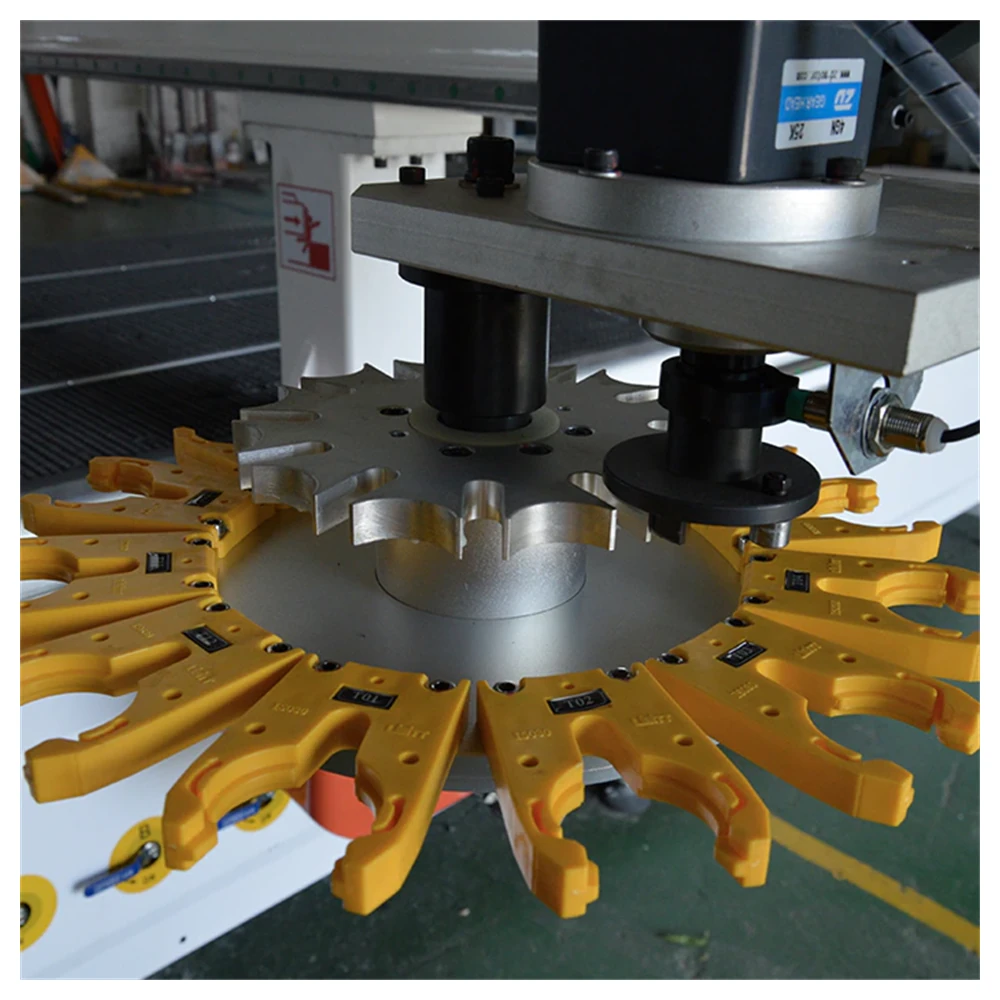

A disc automatic tool changer holds the cutter set, so a 3D job can run roughing, finishing and undercut tools in one cycle.
German Rack Drive

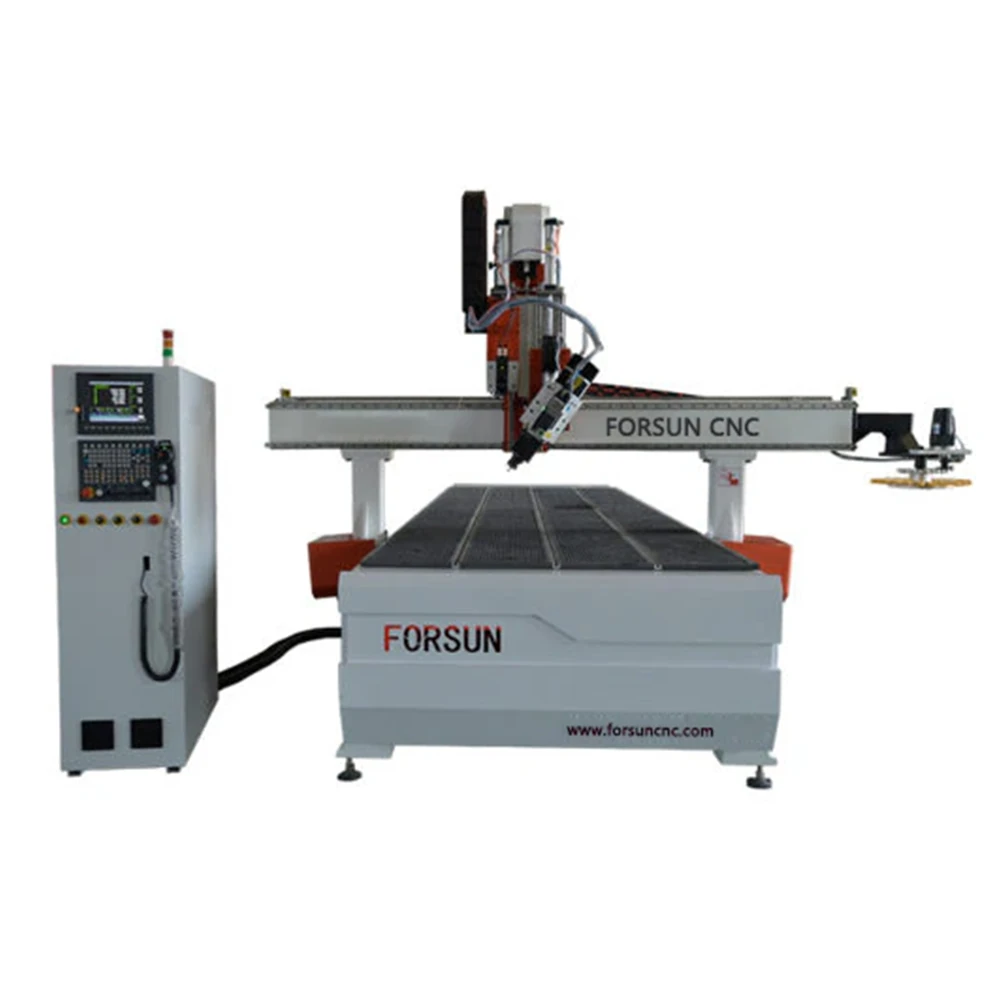

Helical rack and pinion on X and Y with a TBI ball screw on Z, driven by Yaskawa AC servos for accurate long travels.
Applications
Moulds, Curved Work and 3D Surfaces
Sectors where the shape of the part matters as much as its outline.
A
Mould & Pattern Making
Casting moulds, master patterns and foundry tooling in tooling board, resin and soft metal.
B
Transport & Marine
Automotive, ship, yacht and rail components and models, where large curved surfaces are the norm.
C
Architecture & Interiors
Curved panel work, columns, balustrades and feature shapes carved from wood and composite board.
D
Sculpture & 3D Art
Relief sculpture, three-dimensional artwork and cylindrical carving projects of substantial size.
E
Signage & Advertising
Indoor and outdoor signs, engraved and relief lettering, 3D characters and memorial products.
F
Plastics & Composites
ACP, ACM, solid surface materials and non-ferrous metals cut and shaped on the same machine.
Quality & Aftercare
How the Machine Is Built and Backed
Frame preparation, assembly verification and a service commitment that does not depend on shipping the machine back.
Machined Frame
The welded frame is milled and drilled on a machining centre to keep mounting faces flat and holes on position.
Surface Preparation
Blasting, filling and derusting before painting, then the finish is applied, which is what protects the frame over years outdoors or in a dusty shop.
Verified on Assembly
Squareness, travel accuracy, machining accuracy and repeatability are measured with instruments once assembly is complete.
7 × 24 Support
After-sales support in English, Russian, Spanish and Portuguese, with email answered within 12 hours on GMT plus 8.
- WarrantyThree years on main components and 18 months on wear parts.
- Named componentsGerman SIEMENS and Igus parts, Japanese Yaskawa servos and Swiss ABB components are used where the datasheet specifies them.
- Volume termsVolume terms are agreed per order against quantity and destination.
