Twin-Head Gantry Router
Multi-Spindle CNC Router

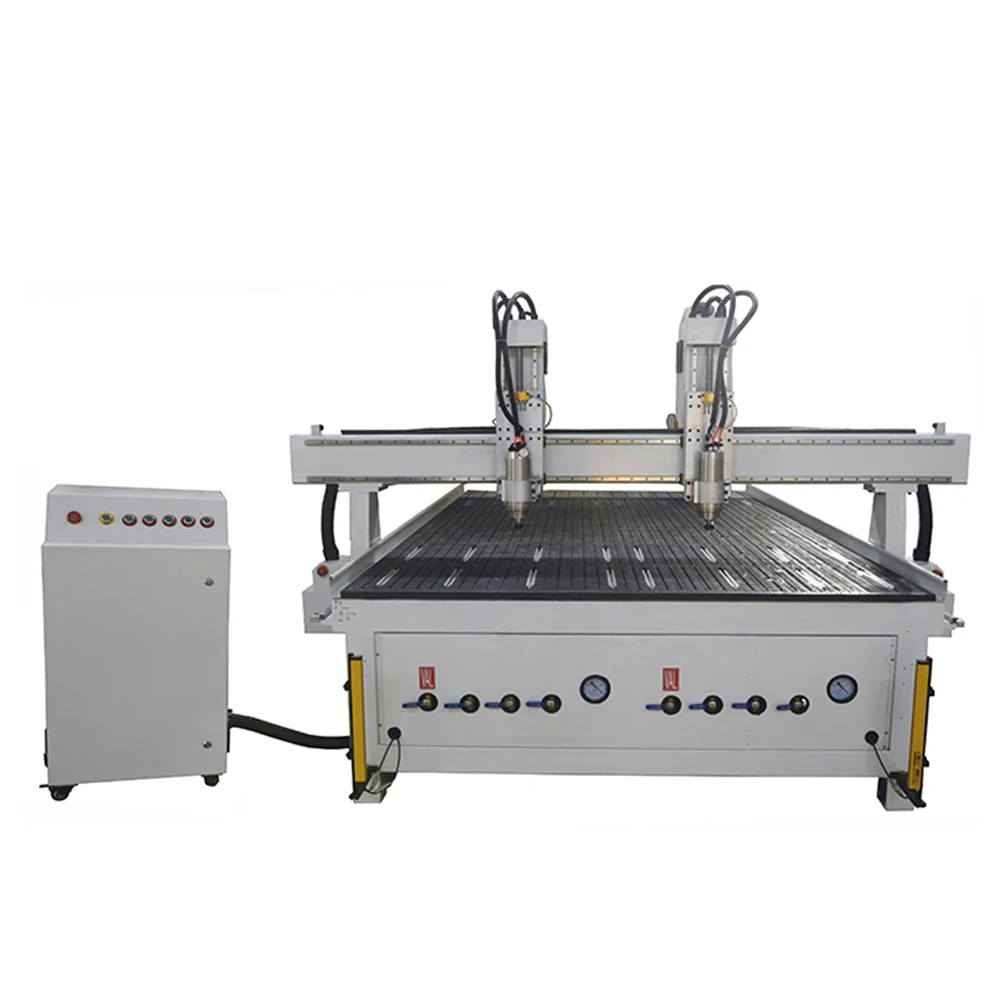

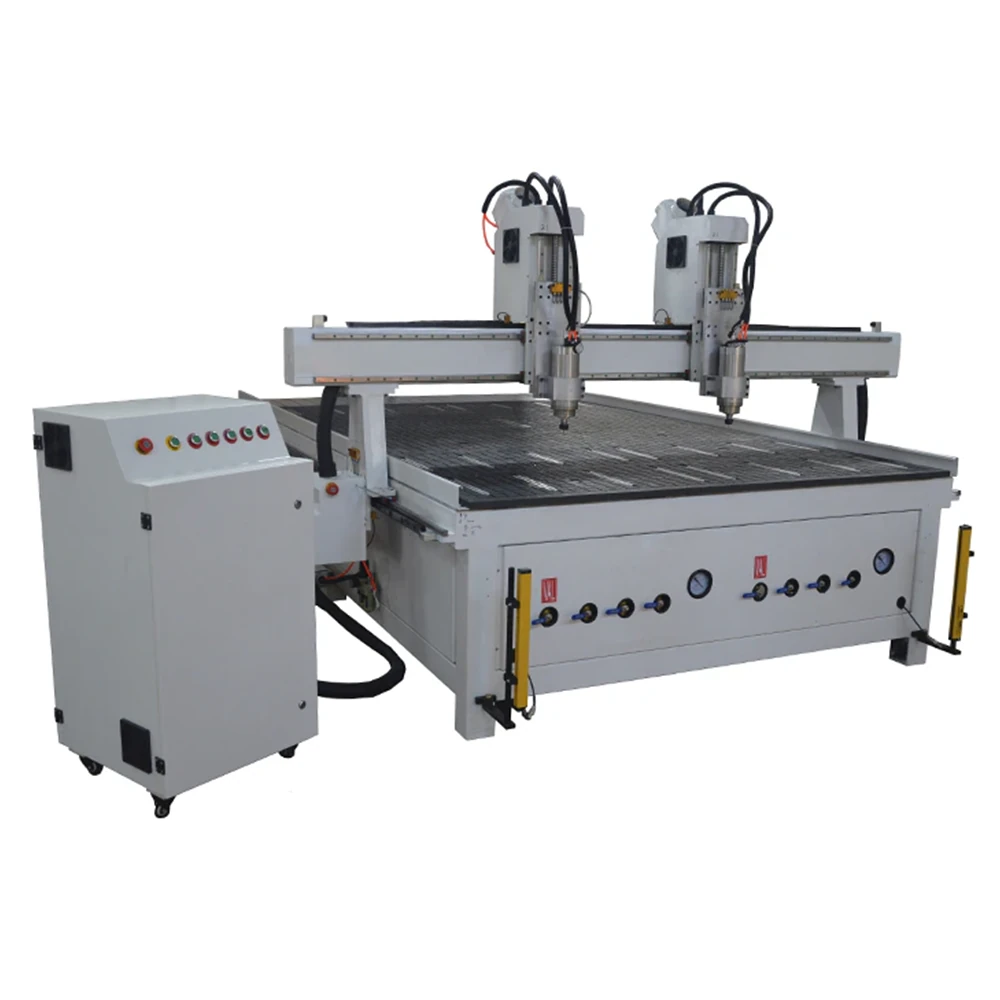

When a part is the same shape every time, the fastest way to make more of it is to cut more than one at once. This three-axis gantry router carries two 4.5 kW spindles on a single gantry and drives them along the same toolpath, so each cycle finishes two identical parts instead of one. Either head can also run on its own, which keeps the machine useful when the batch is small.
2000×3000mmWorking area
2 × 4.5kWSpindles
2×Output per cycle
18,000rpmSpindle speed
Concept
Two Spindles, One Gantry, Half the Cycle

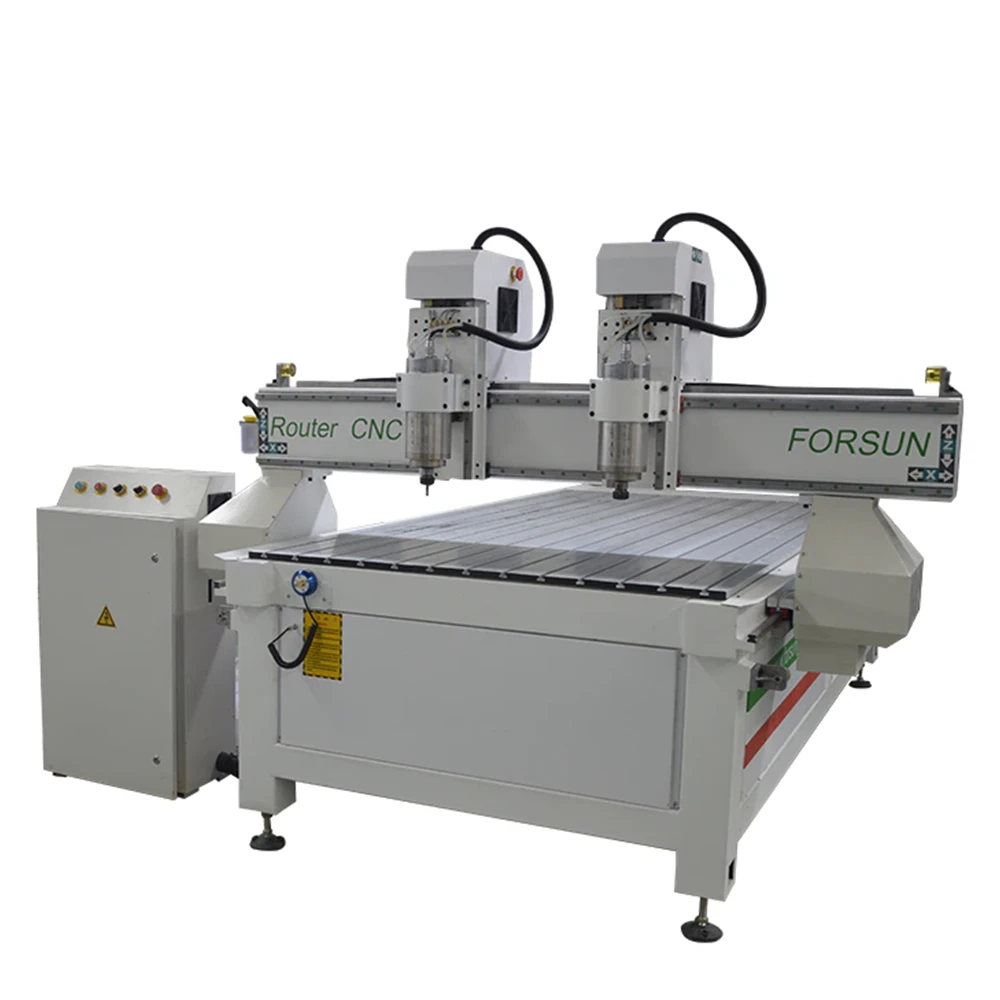

A multi-spindle router works on the same principle as an automatic tool changer, but instead of swapping tools it swaps heads. Both heads are fixed to one gantry and follow the same path, so a single program produces two identical parts in the time a single-head machine produces one.
- Same pattern, two headsBoth spindles cut the same toolpath at full depth and at the same feed, so the two parts come off the machine identical.
- Independent operationEach spindle can run on its own for smaller batches or for a single large part, so the machine is not limited to twin production.
- Fixed table, moving gantryWorkpieces are clamped on the table and the gantry travels over them, so parts of most sizes can be positioned anywhere on the bed.
- Built for small-part batchesDesigned specifically for high-volume runs of small parts, where repeatability across the batch matters as much as cycle time.
Signature Diagram
Twin-Head Throughput: One Machine, Two Outputs
The comparison that matters is not spindle power — it is how many finished parts leave the table per shift.
2headsCutting per cycle
2×Output per hour
40,000mm/minMaximum rapid
25,000mm/minMaximum machining speed
| Mode | Parts per cycle | Best for | Typical part type |
|---|---|---|---|
| Twin-head | 2 identical parts | High-volume repeat production | Cabinet doors, gift items, decorative panels |
| Twin-head, nested | 4 or more per cycle | Maximum output on very small parts | Small crafts, badges, ornaments |
| Single-head | 1 part | Mixed and short batches | One-off sized panels and prototypes |
| Single large part | 1 part, full table | Oversized flat components | 2000 × 3000 mm panels |
Throughput figures describe how the heads are arranged, not a guaranteed output rate. Actual output depends on the part program, material and feed rate; send us the part and we will confirm the cycle.
Technical Data
Multi-Spindle Router Technical Data
Transcribed from the machine parameter table.
| Parameter | Value |
|---|---|
| X and Y travel | 2000 × 3000 mm; options 1300 × 2500 mm, 1500 × 3000 mm, 2000 × 4000 mm |
| Z travel | 200 mm; options 300 / 400 / 500 / 600 mm |
| Spindles | 2 × 4.5 kW air-cooled at 18,000 rpm; options 3.0 / 6.0 kW |
| Collets | ER20 / ER25 / ER32, 4 / 6 / 1/8 / 1/2 in |
| X and Y drive | German helical rack and pinion |
| Z drive | TBI ball screw |
| Guideways | HIWIN / THK linear rails and blocks |
| Axis motors | Stepper or AC servo |
| Body structure | Thickened welded steel frame, rigid gantry and side supports |
| Table | Aluminium T-slot or vacuum table |
| Voltage | 220V or 380V, 50–60 Hz three phase |
| Command language | G code and M code |
| Control | DSP / NC Studio / Mach3 / Syntec / SIEMENS |
| Lubrication | Automatic |
| Tool setting | Automatic tool setter |
| Dust extraction | 3.0 kW system with two filter bags |
| Maximum rapid | 40,000 mm/min |
| Maximum machining speed | 25,000 mm/min |
| Repeatability | ±0.04 mm / 300 mm |
| Machining accuracy | ±0.03 mm / 300 mm |
| Gross weight | 2300 kg |
| Packing size | 3800 × 2250 × 1950 mm |
The number of spindles beyond the standard two is specified per order, and table sizes, Z travel and control system are confirmed before production.
Structure

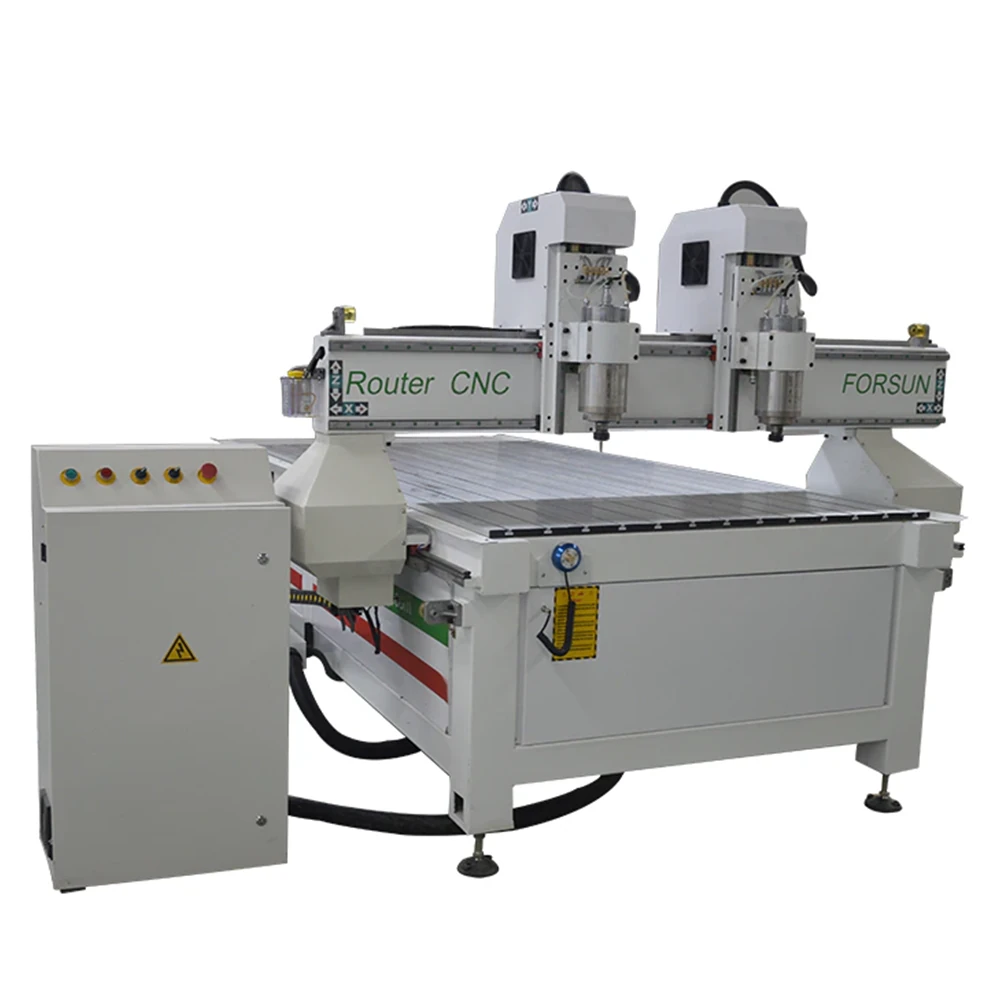

Welded Steel Gantry That Stays Square
Two heads mean twice the cutting force on one gantry. The frame and drive were chosen to keep it square under that load.
Welded, Tempered Frame
The base and gantry are welded as one steel structure and then tempered and stress relieved, so the machine keeps its squareness and does not need periodic recalibration.

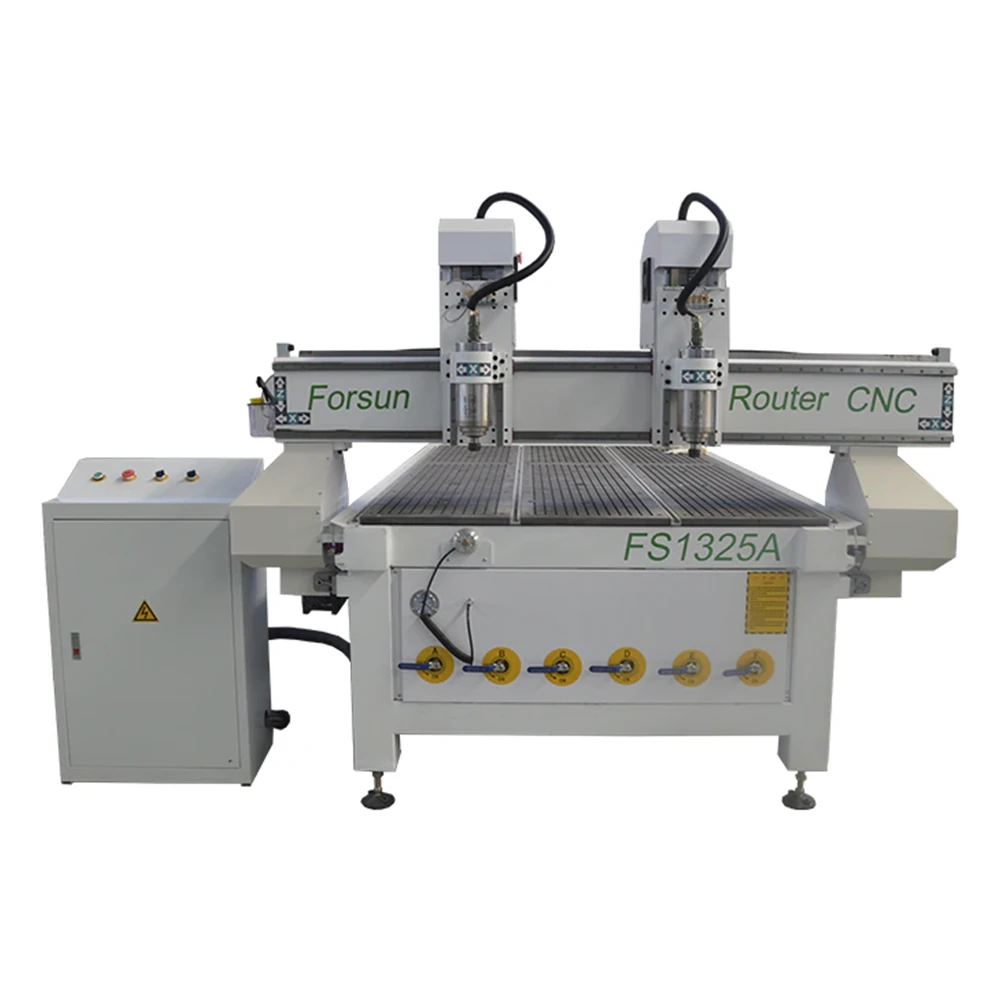

Dual Rack Drive on Y
The Y axis uses a rack and pinion drive on both sides, which drives the gantry evenly and resists twisting during heavy cutting.
Resume After Interruption
Breakpoint resume and power-off memory let a long production job pick up exactly where it stopped, which protects the batch after a power cut.
- Fixed table, moving gantryMaterial can be clamped anywhere on the 2000 by 3000 mm bed, not only within a fixed head position.
- T-slot or vacuum tableMechanical clamping for solid parts, or vacuum holding for thin panels, chosen to suit the work.
- Offline runningThe controller can run the machine without a computer attached, so the design office is not tied up during production.
Applications
Batch Parts Made Two, Four or Six at a Time
Any job where the same shape repeats many times is a candidate for multiple heads.
01
Cabinet & Wooden Doors
Cabinet doors, interior doors and door panels cut and profiled in matched pairs or groups.
02
Decorative Screens
Screens, fan windows and patterned panels produced in repeat batches at high throughput.
03
Craft & Gift Items
Giftware, ornaments and embossed craft products where volume and consistency both matter.
04
3D Wave Panels
Wave-board and textured wall panels routed across the full 3000 mm bed.
05
Signage & Lettering
Acrylic cutting, two-colour plate engraving and PVC work produced two pieces at a time.
06
Non-Ferrous Cutting
Aluminium, brass and thin metal panel work where the machine is fitted with the appropriate tooling.
Related Models
Other Routers in the Range
A rotary-axis machine for curved work, or an ATC router for multi-tool flat panel jobs.
Woodworking ATC CNC Router
A 2000×4000 mm machine with a 10-station linear magazine for multi-tool furniture work.
View model
Stone CNC Engraving Machine FSM1313
A water-cooled stone machine when the same batch logic applies to marble and granite instead of wood.
View model
FAQ
Multi-Spindle CNC Router Questions
Both heads are carried on the same gantry and follow the same toolpath, so one program cuts two identical parts at the same time. For parts that fit under each head, a two-head machine produces roughly twice the output of a single-head machine for the same floor space, the same operator and the same cycle time.
Yes. Each spindle can be run on its own, so the machine can cut a single large part with one head while the other stays out of the way, or run two different jobs on the two heads when a batch is smaller. That flexibility is what lets one machine serve both high-volume and mixed work.
It is designed for large batches of small to medium parts: cabinet doors, wooden doors, screens and decorative fan windows, craft gifts, embossed decorative items, engraving and cutting of non-ferrous metals. Any job where the same shape is repeated many times in wood, MDF, plywood or plastic is a natural fit.
The machine base and gantry are welded from steel tube as one structure and then tempered and stress relieved. That keeps the gantry square and the side supports aligned without the periodic recalibration that bolted or lightly built frames require. The Y axis uses a dual rack drive, which also helps the gantry resist twisting in a heavy cut.
The machine runs a DSP hand controller or NC Studio, with Mach3, Syntec and SIEMENS also listed as options. Breakpoint resume and power-off memory let a long job continue after an interruption, and the controller can run offline. Design files from Type3, Ucancam, Artcam, Vectric, EnRoute, Mastercam and Cabinet Vision are supported.
Standard builds ship in 15 to 30 working days after deposit, with customised table sizes or spindle configurations taking 30 to 45 working days. Main components carry a two-year warranty, and production capacity is 30 sets per month. Volume terms are agreed per order.
