Linear ATC CNC Wood Router 1325
The same 10-station linear magazine on a 1300×2500 mm table for smaller workshops.
View model
Automatic Tool Change Router
Woodworking ATC CNC Router
A furniture part rarely needs just one cutter. It needs a rougher, a finisher, a groover and a drill, and every one of those changes means the machine has to stop and an operator has to reach in. This 2000 by 4000 mm router carries a 9 kW automatic tool change spindle and a 10-station linear magazine, so the whole sequence runs from the program in one unattended cycle.
2000×4000mmWorking area
9.0kWATC spindle
10Tool stations
80,000mm/minMaximum rapid
Overview
One Cycle, Ten Tools, No Operator
Three features turn a sheet of board into a finished part without anyone standing at the machine.
Linear Magazine

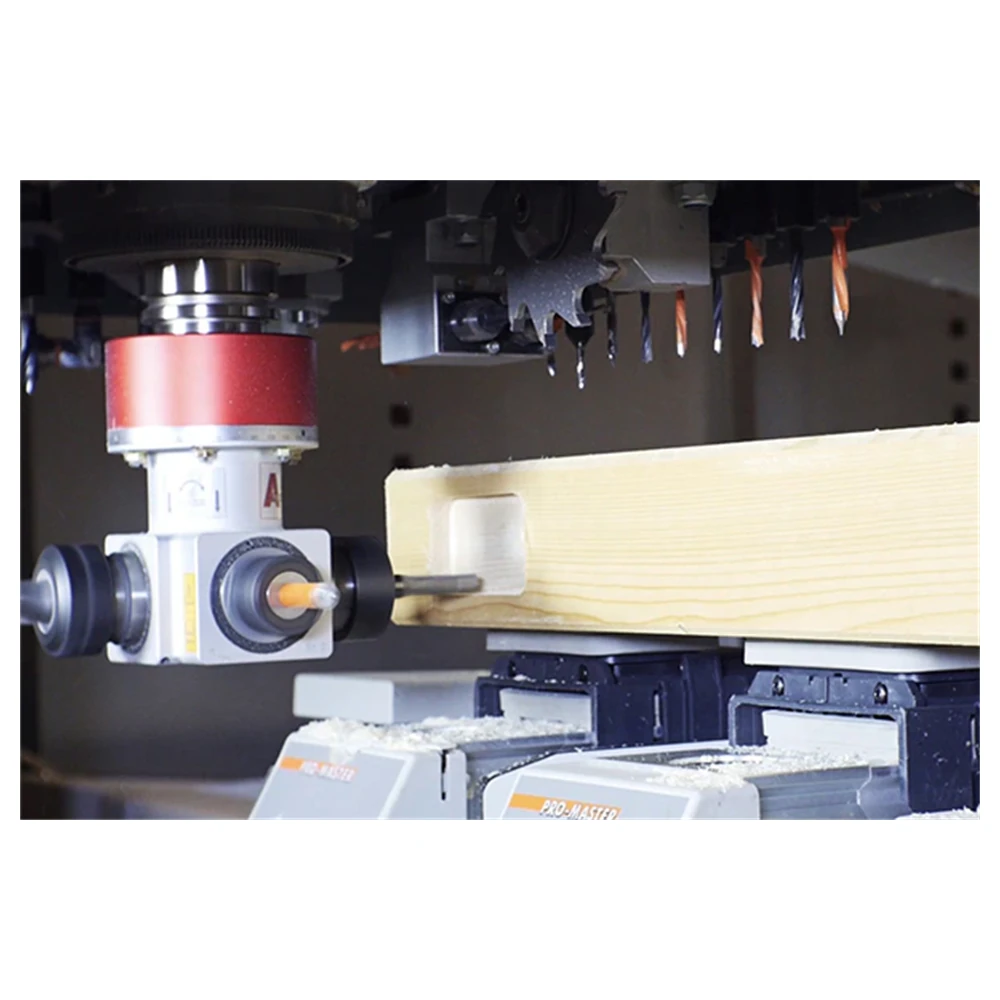

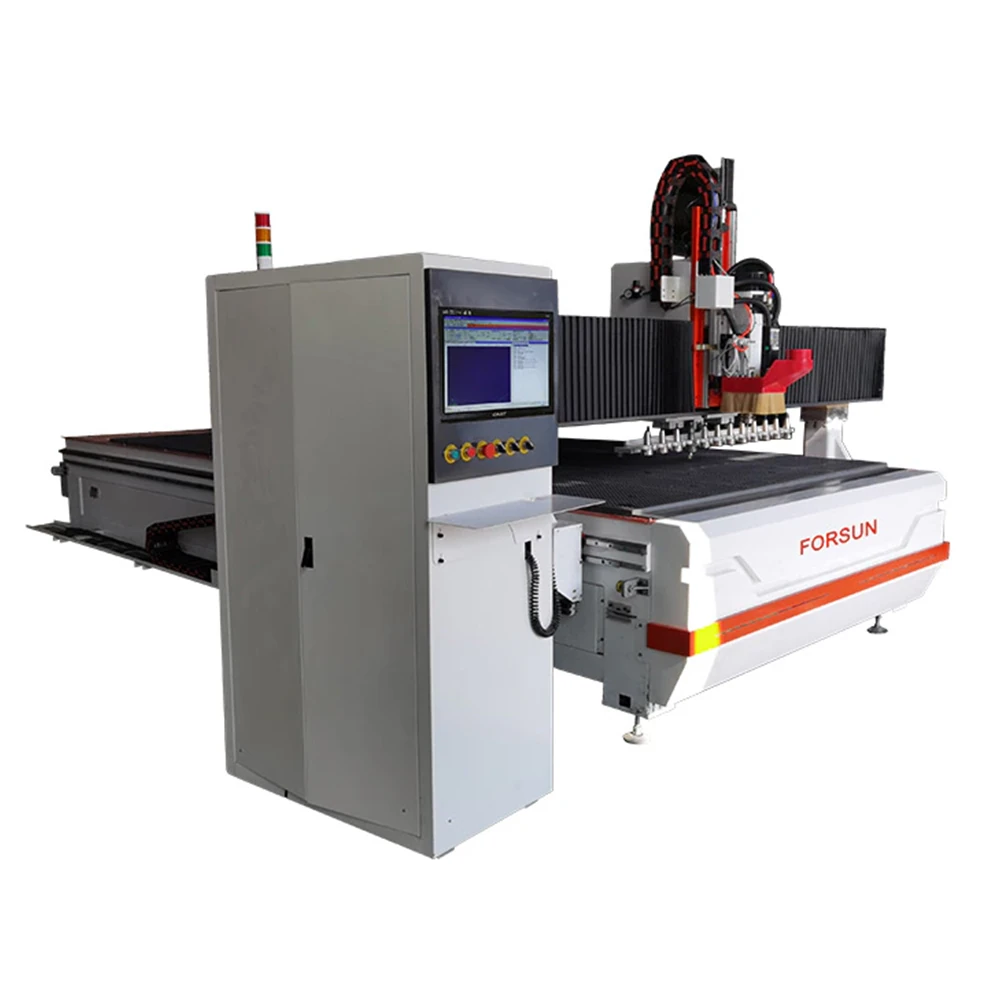

Ten tool positions fed from the side of the gantry, so the machine changes cutter without stopping for an operator.
Vacuum Workholding

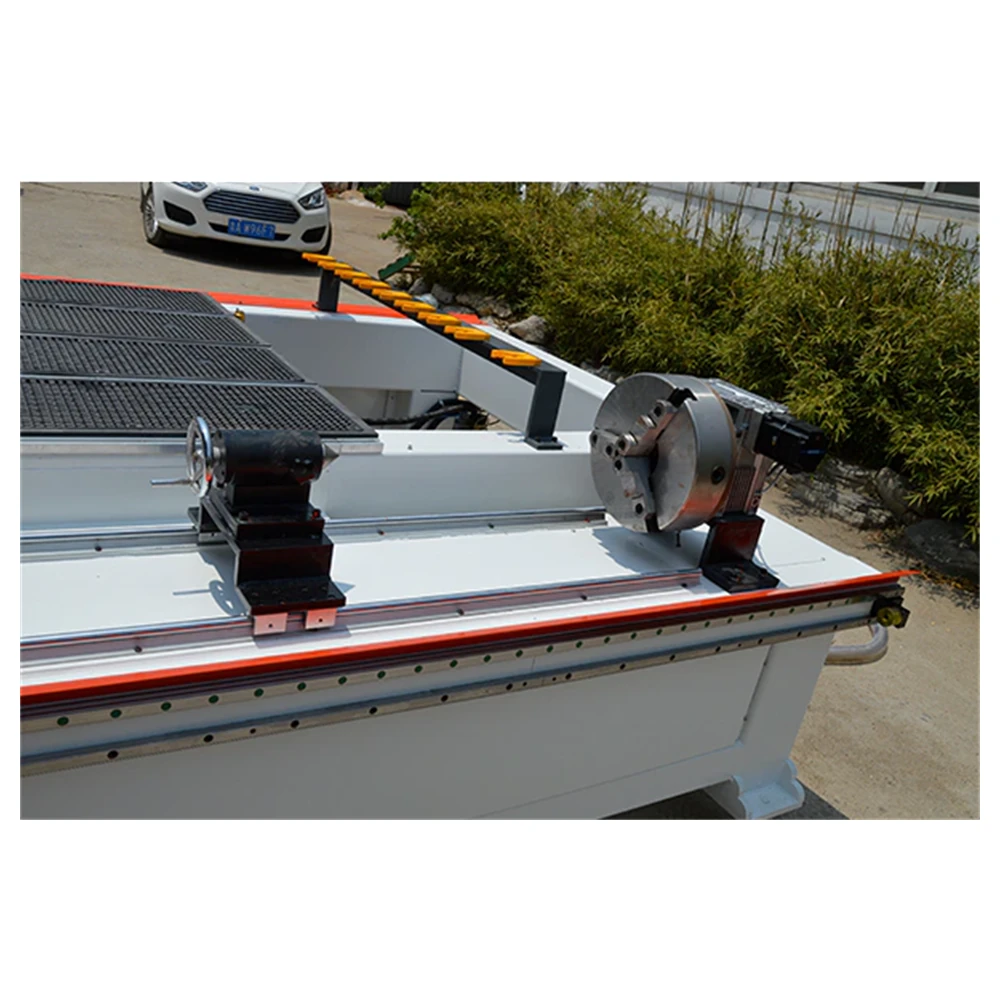

A cast steel table with an aluminium T-slot and vacuum clamping surface holds thin panels flat and releases them fast.

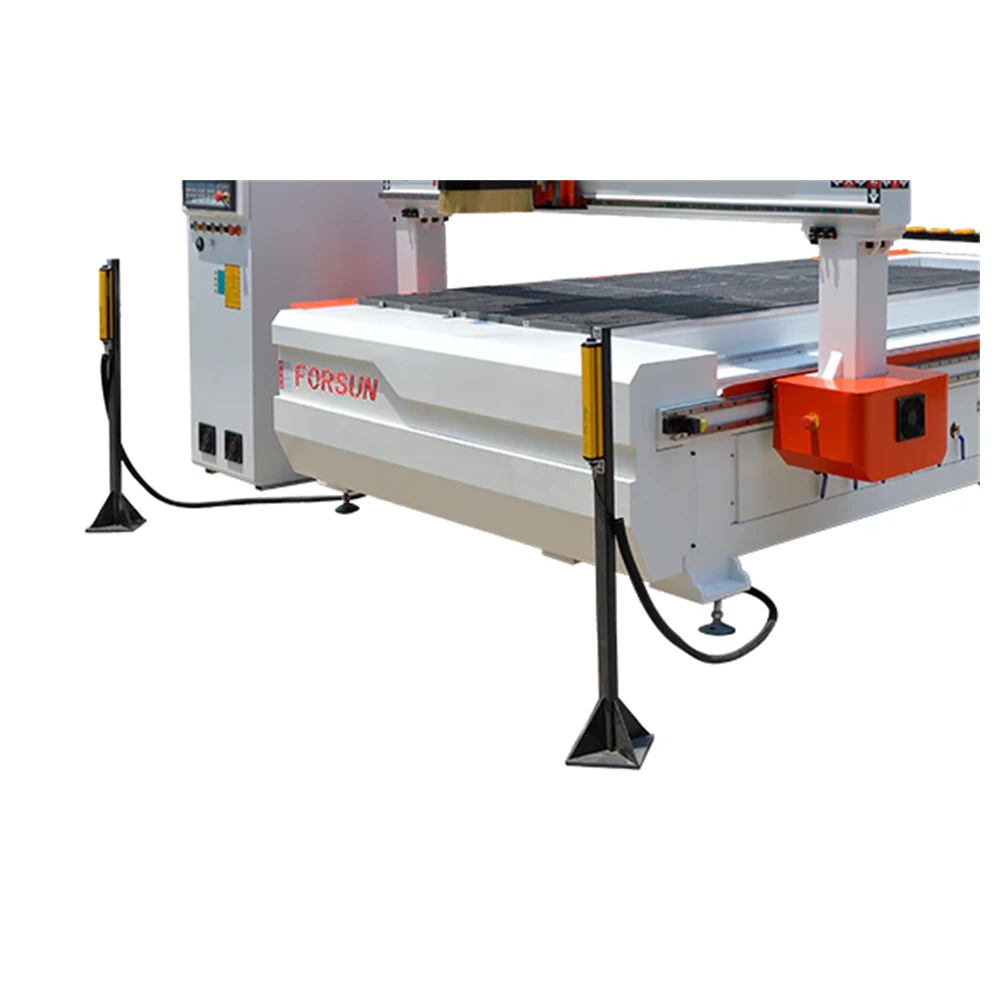

Fast Travel
An 80,000 mm/min rapid and 45,000 mm/min machining speed keep repositioning short between long nested toolpaths.
Signature Diagram
The 10-Station Linear Magazine Map
A typical furniture part uses four to six of the ten positions. This is how a full door panel cycle distributes them.
10Linear magazine positions
9.0kWSpindle power
6.4N·mMaximum spindle torque
12,000–24,000rpmSpeed range

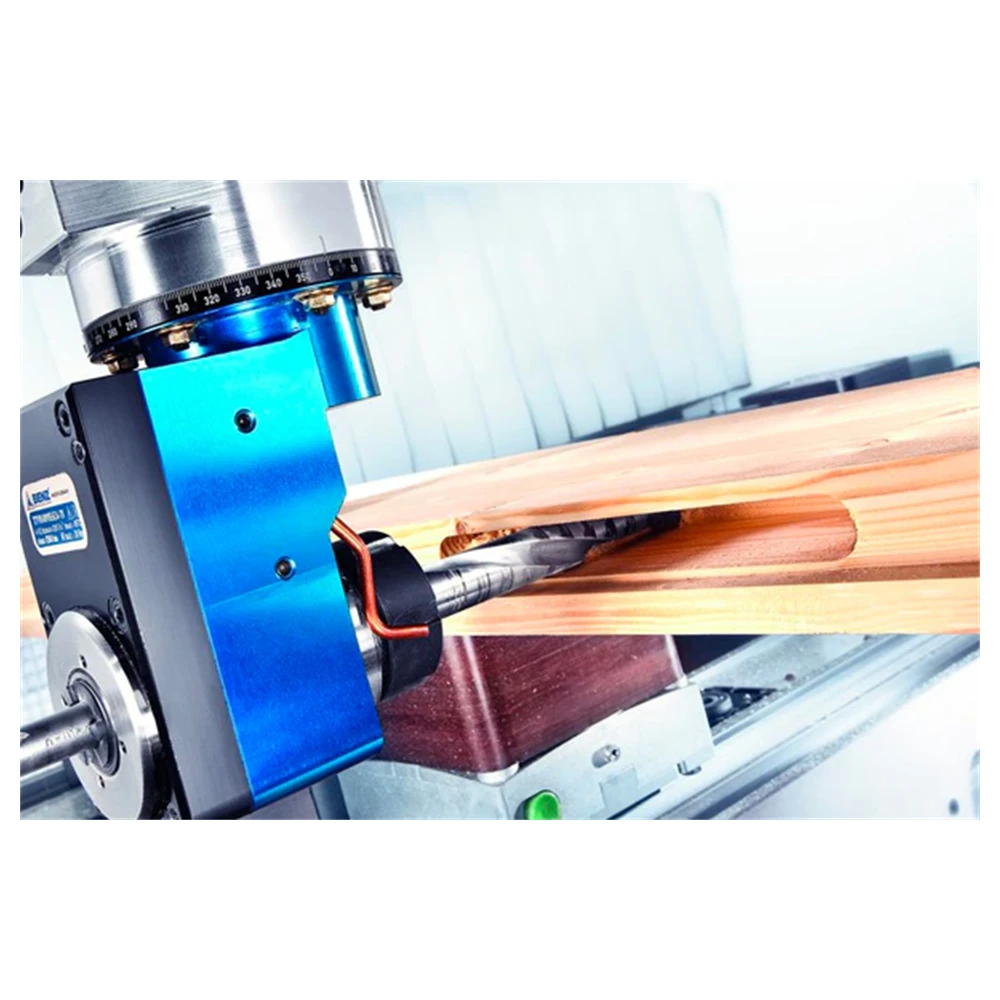

| Station group | Tool | Operation | Speed band |
|---|---|---|---|
| 1–2 | Flat and compression spiral | Nesting and through cutting of the panel outline | Low to mid |
| 3–4 | Grooving and rebate cutters | Slots, rebates and hinge recesses | Low |
| 5–7 | Drill banks and hinge borers | Shelf pin, dowel and hinge boring | Mid to high |
| 8–9 | Straight and round-nose profile | Edge profile and decorative moulding | Mid to high |
| 10 | Fine engraving cutter | Surface detailing and lettering | High |
The grouping above is an example of how a furniture cycle uses the magazine, not a fixed assignment. Tool positions, offsets and speeds are set for your own part in the machine program.
Technical Data
FS2040ATC Technical Data
Transcribed from the machine parameter table.
| Parameter | Value |
|---|---|
| X and Y travel | 2000 × 4000 mm; options 2000 × 3000 mm, 1300 × 2500 mm, 1500 × 3000 mm |
| Z travel | 200 mm; options 300 / 400 / 500 / 600 mm |
| Spindle | 9.0 kW ATC, 24,000 rpm, ISO30, ER32 |
| Spindle torque | 6.4 N·m maximum |
| Spindle speed range | 12,000–24,000 rpm |
| Tool magazine | 10-station linear ATC; disc magazine option |
| Automatic push-off | Available as an option |
| Axis motors | 1000 W AC servo |
| X and Y drive | Helical rack and pinion |
| Z drive | High-precision ball screw |
| Guideways | HIWIN / THK linear rails and blocks |
| Body structure | Cast steel table structure with side supports |
| Table | Aluminium T-slot combination vacuum clamping table |
| Voltage | 220V or 380V, 50–60 Hz three phase |
| Command language | G code and M code |
| Control | NC Studio; options Syntec / SIEMENS / DSP |
| Lubrication | Automatic |
| Tool setting | Automatic tool setter |
| Dust extraction | 3.0 kW system with two filter bags |
| Collets | ISO30, 4 / 6 / 1/8 / 1/9 in |
| Maximum rapid | 80,000 mm/min |
| Maximum machining speed | 45,000 mm/min |
| Repeatability | ±0.04 mm / 300 mm |
| Machining accuracy | ±0.03 mm / 300 mm |
| Gross weight | 2500 kg |
| Packing size | 4000 × 2250 × 1900 mm, plywood case |
Table size, Z travel, magazine type and control system are confirmed before production, and the automatic push-off device is an option. Files from Type3, Ucancam, Artcam, Alphacam, Vectric, EnRoute, Mastercam and Cabinet Vision are supported.
Spindle Behaviour
A 9 kW Spindle That Manages Itself
The spindle is designed to run without supervision: it starts and stops on command from the program, and the control handles the tool change, so the cycle keeps moving.
- Intelligent start and stopThe spindle controls its own run and stop from the program, which is safer, more convenient and more energy efficient than leaving it spinning between operations.
- A speed range for every cutterFrom 12,000 to 24,000 rpm with a 6.4 N·m maximum torque: ideal for the full set of router and drill tooling.
- Rated for real materialsAble to cut and engrave materials up to 60 HB in hardness, which covers timber, board stock, plastics and soft non-ferrous metals.
- Manual pulse generatorA handwheel is supplied for setting the workpiece origin and making fine or continuous jog adjustments by hand.
Applications
Furniture, Doors and Interior Decoration
Built for the woodworking and fit-out trades, and useful in several other sectors besides.
01
Furniture Production
Cabinet doors, interior doors, solid wood furniture, sofa legs, headboards and door panels produced from one program.
02
Interior Decoration
Wave panels, fine patterns, antique-style furniture, screens and decorative window sashes for fit-out projects.
03
Signage & Advertising
Sign boards, acrylic engraving and cutting, crystal lettering and derived advertising materials.
04
Mould & Model Work
Copper, aluminium and iron moulds, plus non-metal moulds in artificial marble, PVC, board and resin.
05
Craft & Gift Products
Gifts, ornaments, wooden toys, metal relief work and copper and aluminium lettering.
06
Instrument & Packaging
Pattern engraving for musical instruments, and cutting and processing of plastic and timber for packaging.
Build & Delivery
Inspection, Packing and Commissioning
What happens to the machine before it reaches your door, and what happens after.
Frame Preparation
Welded as one structure, heat treated and high-frequency vibrated, then blasted, rust proofed and painted in three coats.
11-Stage Inspection
Eleven inspection stages before dispatch, so the machine arrives ready to run rather than ready to be set up.
Test Before Shipping
Commissioned and tested over 48 hours, with test video and images sent to you for approval before the shipment is booked.
Online Commissioning
Engineers guide software and component installation over WhatsApp, email and TeamViewer, and train your operators.
- Drive and control detailsSelf-tensioning dual pinion drive, high-precision anti-backlash ball screws and intelligent machining limit protection on the Syntec option.
- DocumentationFull customs clearance documents are supplied, and the freight agent notifies you when the machine reaches your port.
- Volume termsVolume terms are agreed per order against quantity and destination.
Related Models
More Machines From the Same Platform
A 4×8 ft ATC machine for a smaller footprint, or a twin-head machine for maximum throughput.
Multi-Spindle CNC Router
Two heads cutting the same pattern at once for parts that repeat thousands of times a month.
View model
Four-Axis CNC Wood Router FS1530A
Adds a rotary head for cylindrical and 3D carving when the part is curved rather than flat.
View model
FAQ
Woodworking ATC CNC Router Questions
Because most furniture parts need more than one cutter. Without an automatic changer, someone has to stop the machine, loosen the nut, swap the cutter and reset the length every time the operation changes. A 10-station magazine does this from the program, so nesting, drilling, grooving and profiling run in one unattended cycle and the spindle stays in cut.
The spindle is a 9 kW automatic tool change unit with a maximum torque of 6.4 N·m and a speed range from 12,000 to 24,000 rpm, fitted with an ISO30 taper and ER32 collets. That speed range suits the full set of router cutters, and the machine is rated to cut and engrave materials up to 60 HB in hardness.
The machine uses a cast steel table structure with side supports and an aluminium T-slot combination vacuum clamping table. Vacuum suction cups hold thin and flat panels firmly and can be repositioned quickly, which is what makes it practical to change from one nested sheet layout to the next without building a fixture.
The standard control is NC Studio, with Syntec, SIEMENS and DSP also available. The Syntec option adds intelligent machining limit protection that prevents a collision when a nest runs outside the working area, and independent machining speed control. Files from Type3, Ucancam, Artcam, Alphacam, Vectric, EnRoute, Mastercam and Cabinet Vision are supported.
The frame is welded as one structure, heat treated, high-frequency vibrated, blasted, rust proofed and painted in three coats, then inspected through 11 process stages before dispatch. The machine is commissioned and tested for 48 hours before shipping, and we send the test video and images for your approval before booking the shipment.
Our engineers guide installation of the software and the machine components over WhatsApp, email and TeamViewer, and teach your operators to run the machine. Main components carry a two-year warranty, and production capacity is 30 sets per month. Volume terms are agreed per order.
