Built Around Your Brand

Customizable 4-in-1 Laser Welding Machine

The same four-in-one welding platform, dressed in your identity. An illuminated logo, your nameplate, your housing colour and your interface language turn a machine into a branded asset your customers recognise. Underneath, it is the identical 1080 nm welding, cleaning, cutting and seam-finishing system, from 1500W to 3000W.

1500–3000WLaser power

80 kgMachine weight

0.75 kgWelding gun

4+1Interface languages

Get a Free Quote Ask an Engineer

Overview

A Standard Platform With a Bespoke Face

Machine tools that reach your customers with your logo do more selling than any brochure. This build keeps the proven four-in-one welding platform untouched and changes only what customers see: the cabinet front, the nameplate and the software they meet at start-up.

Illuminated logoA backlit emblem on the cabinet front lifts the machine out of the ordinary on a showroom floor.
Nameplate and colourHousing colour and nameplate content are produced to your artwork.
Interface languageFour languages are built in and one further language can be added for your market.
Unchanged internalsSource, optics, cooling and wire feed stay identical, so weld quality does not vary from the standard build.

Control system and display of the customizable four-in-one laser welding machine — The interface, nameplate and logo are the surfaces your customers see.

Signature Module

Four Surfaces You Can Make Your Own

Everything below is agreed on a proof before the build starts, so the delivered machine matches what you signed off.

Illuminated Logo

A backlit emblem cut to your outline, mounted on the cabinet front so it stays visible in a dim workshop.

Nameplate

Model code, company name and contact details are printed to your layout and fixed to the cabinet.

Housing Colour

The panel colour is selected to match your brand palette instead of the standard finish.

Interface & Splash Screen

Four built-in languages plus one optional language, with a start-up screen carrying your identity.

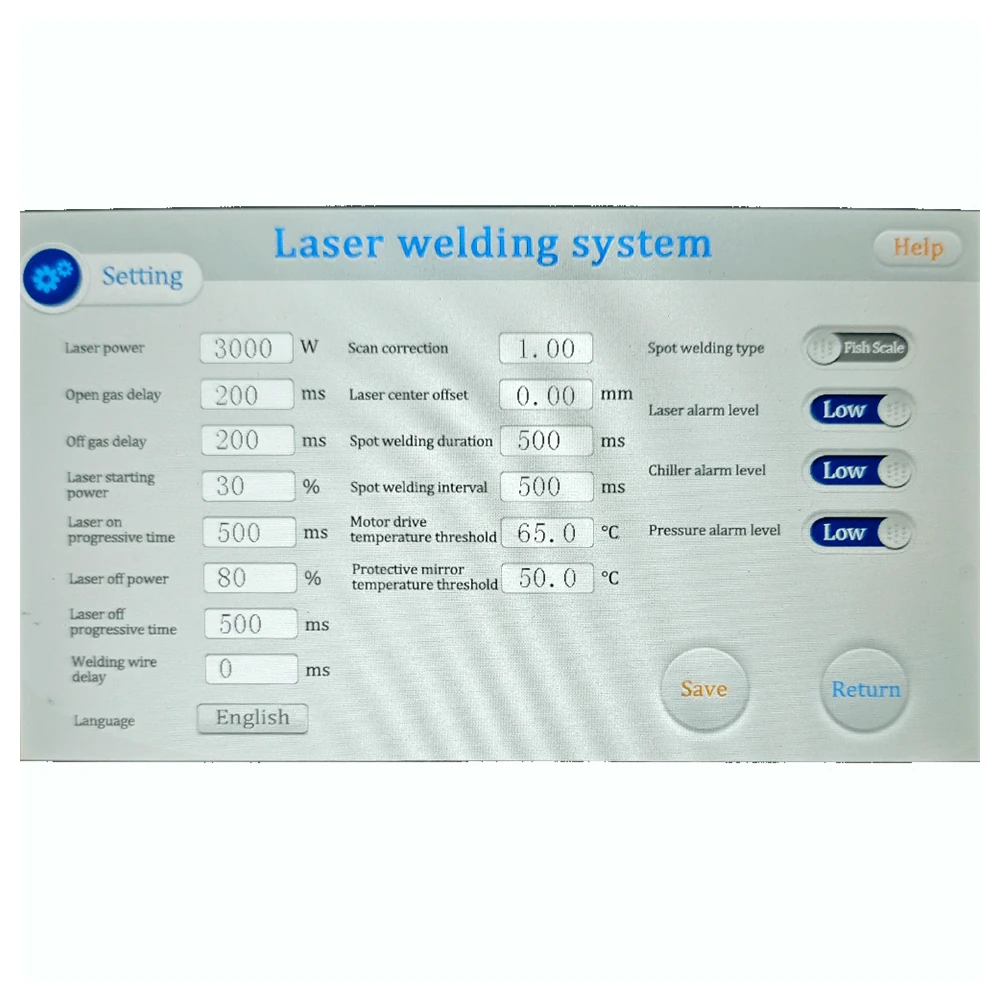

Branded control system of the customizable laser welding machine

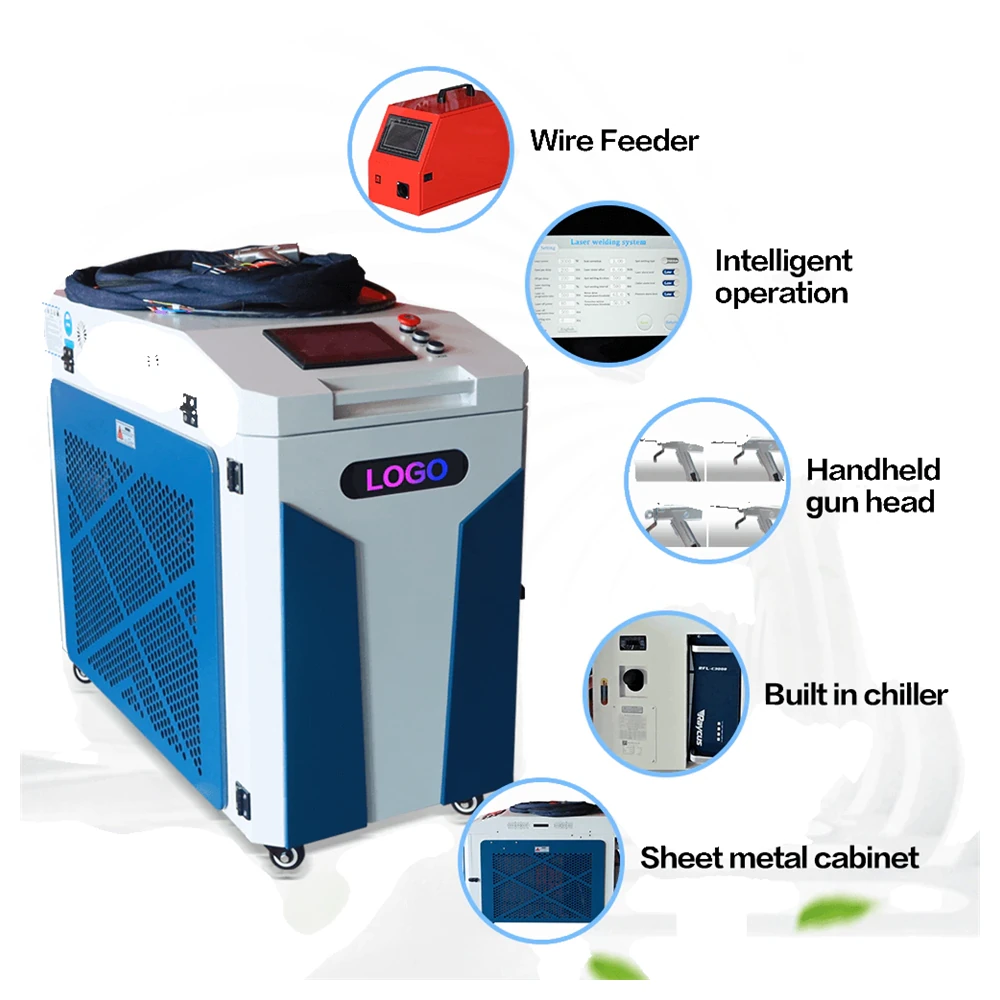

Cabinet front of the customizable four-in-one laser welder

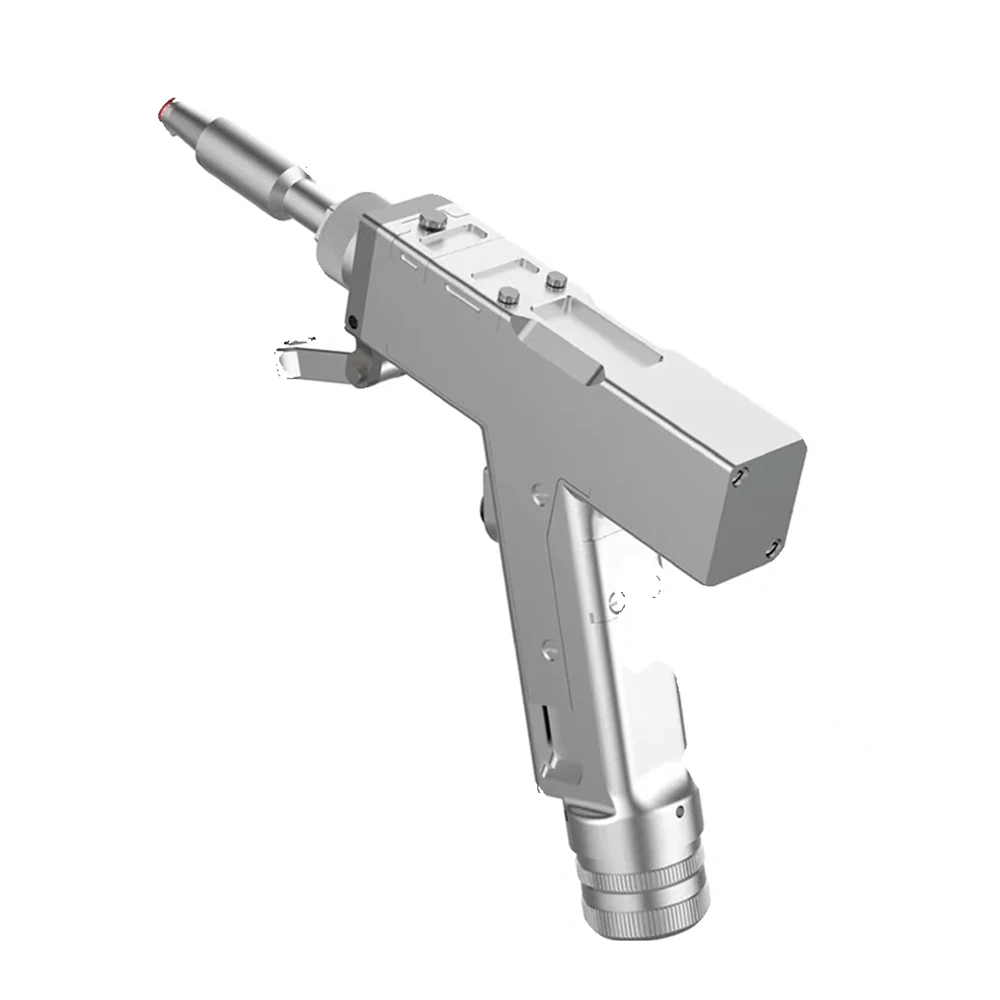

Laser welding gun of the customizable machine

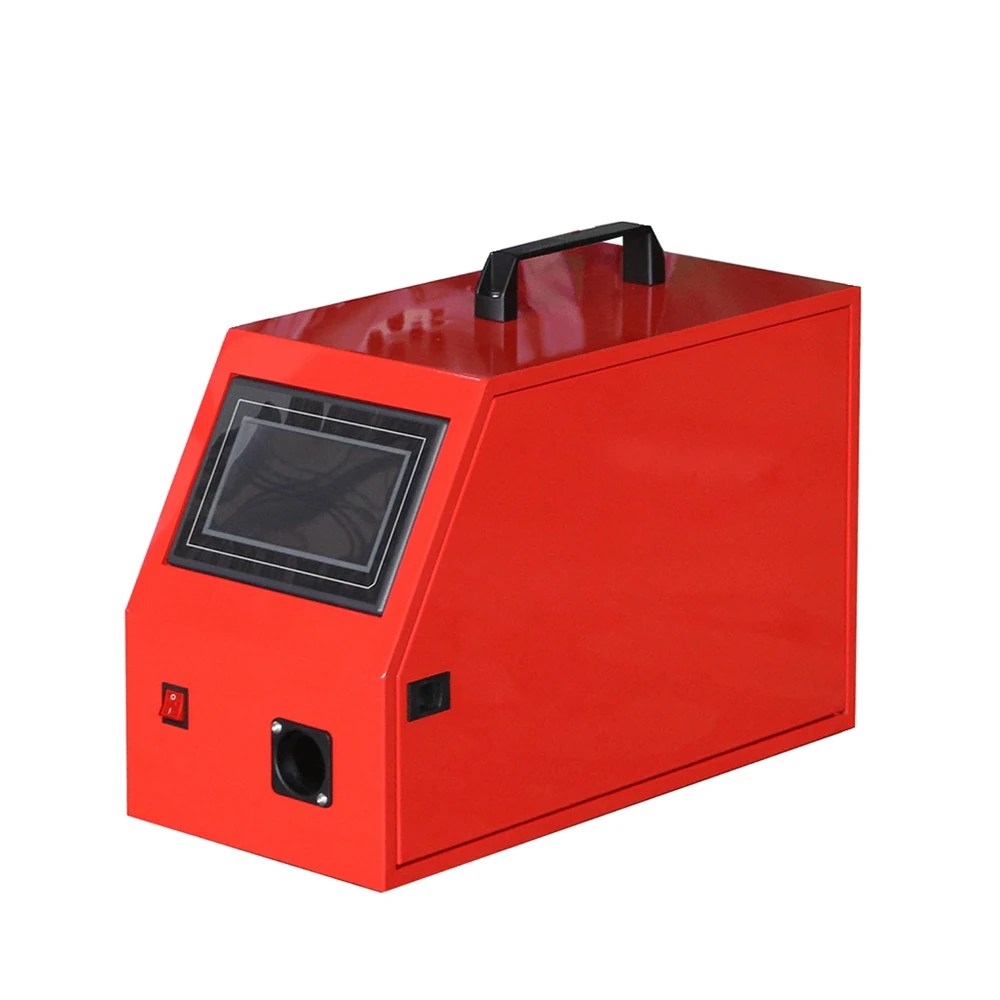

Wire feeder of the customizable four-in-one laser welder

Core Advantages

Branding Without Compromise

The changes are cosmetic and software-level, so none of the welding behaviour is affected.

Distributor-Ready

Machines arrive carrying your identity, ready to install under your name without a re-badging step in your workshop.

Local-Language Operation

Operators work in their own language on the touchscreen, which shortens training and reduces setting errors.

Serviceable Optics

Drawer-type focus and protective lenses with an integrated QBH collimator keep field maintenance quick and aligned.

Technical Data

KR-LW1500C, KR-LW2000C and KR-LW3000C Datasheet

The branding does not move the numbers. Every figure below comes from the machine datasheet.

Technical specifications of the customizable four-in-one laser welding machine
Parameter	KR-LW1500C	KR-LW2000C	KR-LW3000C
Laser Source	Raycus / Reci / BWT / Max
Laser Power	1500W	2000W	3000W
Power Adjustment Range	0–1500W	0–2000W	0–3000W
Supply Voltage	220V single phase	220V single phase	380V three phase
Laser Wavelength	1080 nm
Fiber Length	10 m / 12 m / 15 m, up to 20 m
Operation Mode	Continuous welding
Max Oscillation Speed	20000 mm/s
Run System	Handheld welding system
Cooling System	Water-cooled, integrated chiller
Ambient Temperature	10–40 °C
Ambient Humidity	Below 70%, non-condensing
Weld Gap Requirement	0.5 mm or less
Machine Dimensions	860 × 410 × 700 mm		1140 × 530 × 1040 mm
Wire Feeder Dimensions	570 × 250 × 400 mm
Machine Weight	80 kg
Welding Gun Weight	0.75 kg

Logo, nameplate and language options are specified per order; confirm artwork before production. Ask us for a datasheet matched to your material and thickness.

Key Numbers

The Build in Four Figures

The numbers that define the platform behind the branding.

3000WMaximum laser power

80kgMachine weight

0.75kgWelding gun weight

5langLanguages with the optional extra

Build Process

From Artwork to Crating

A custom build follows four checkpoints so the delivered machine matches the approved proof.

Configure

Confirm power, wire feed, fiber length and the customisation package for your market.

Approve Artwork

We return a proof of the logo, nameplate, colour and interface for your sign-off.

Build and Test

The unit is assembled, branded and weld-tested on your material before packing.

Crate and Ship

Foam-cushioned packing in reinforced cartons, then express, air or sea freight.

Applications

Who Orders a Branded Welder

Custom builds suit sellers who put their own name on the machine.

Equipment Distributors

Sell and support under your own brand, with a machine that already carries your logo out of the crate.

Franchise Workshops

Keep every site visually consistent, from the cabinet front to the start-up screen operators see each morning.

Training Centres

Operators learn on machines in their own language, which shortens onboarding on new equipment.

Ordering & Support

How a Custom Order Runs

Terms are agreed before production, and support continues for the life of the machine.

Shipping

Air express by DHL, FedEx, TNT or UPS, plus air and sea freight. Trackable from the factory door.

Payment

T/T bank transfer, PayPal and Western Union. Terms and Incoterms are confirmed on the proforma invoice.

2-Year Warranty

Parts covered, with free replacement components and lifetime engineering support.

Artwork Proof

A digital proof of logo, nameplate and interface is approved before the build begins.

Lead timeAbout five working days once artwork is approved, plus roughly four to six working days in transit by express.
Volume termsAgreed per order against quantity and destination port.
OEM & ODMFull brand customisation across logo, nameplate, housing colour and interface.

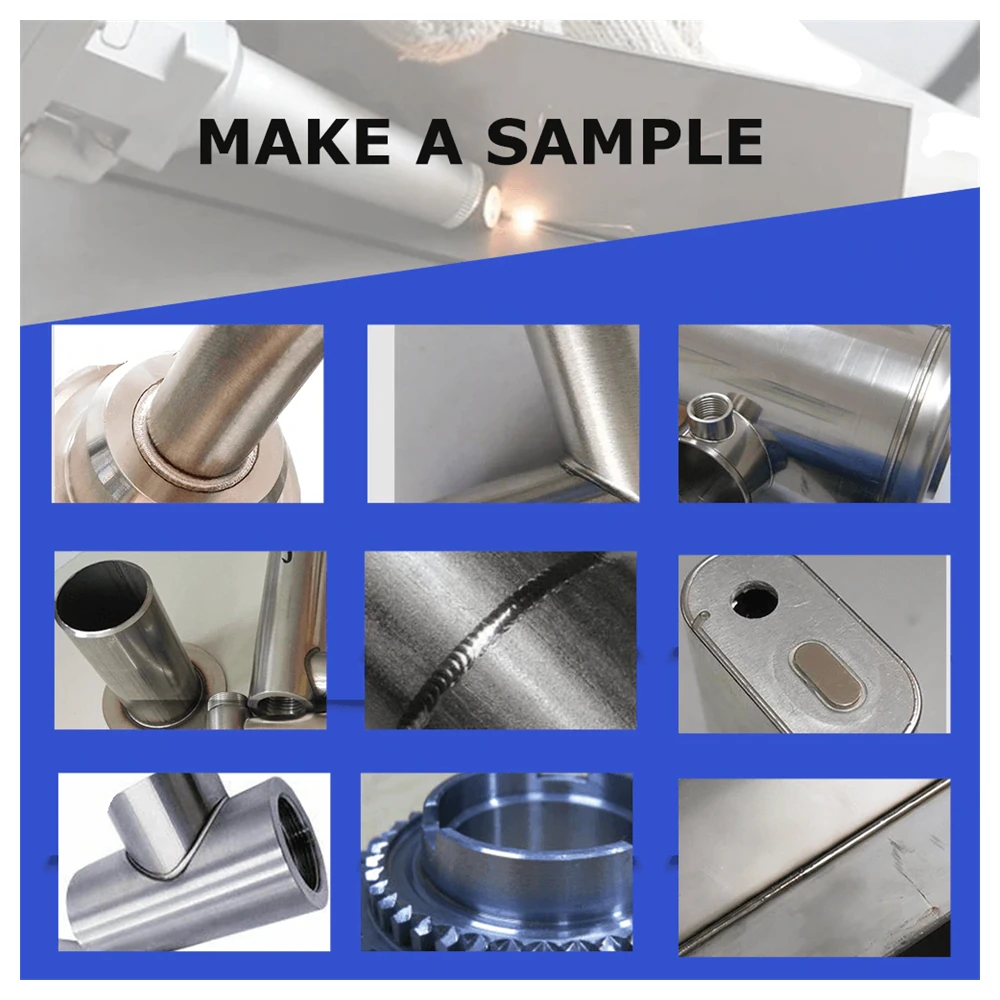

Free sample testSend a part and we return the welded sample, bead data and the parameter file we used.

FAQ

Customizable Laser Welder Questions

The illuminated logo on the cabinet front, the nameplate, the housing colour and the interface language can all carry your identity. Artwork is confirmed on a proof before production so there are no surprises on arrival.

The control system ships with four built-in languages and one further language can be added on request. Switching language is done from the touchscreen, so operators can work in their own language without reflashing the controller.

No. Branding changes the cabinet front, nameplate and software start-up screen only. The laser source, optics, cooling loop and wire feeder are identical to the standard four-in-one platform, so the weld recipe stays the same.

The focus lens and protective lens sit in a drawer-type mount, and the collimating lens is integrated with the QBH connector. Lenses can be swapped in the field without disturbing alignment, which keeps maintenance fast and repeatable.

A fault indicator and safety detection system monitor temperature, gas pressure and laser status in real time. If any reading drifts outside the set window the machine flags it, which protects both the operator and the optics.

Single units can be customised, and the amount of tooling needed falls as order quantity rises. Volume terms are agreed per order against quantity and destination port, so send your target volume for a tailored plan.

Standard production is about five working days once artwork is approved, with express transit adding roughly four to six working days. The machine carries a 2-year warranty with free replacement parts and lifetime engineering support.
