Pedal Seal & Code

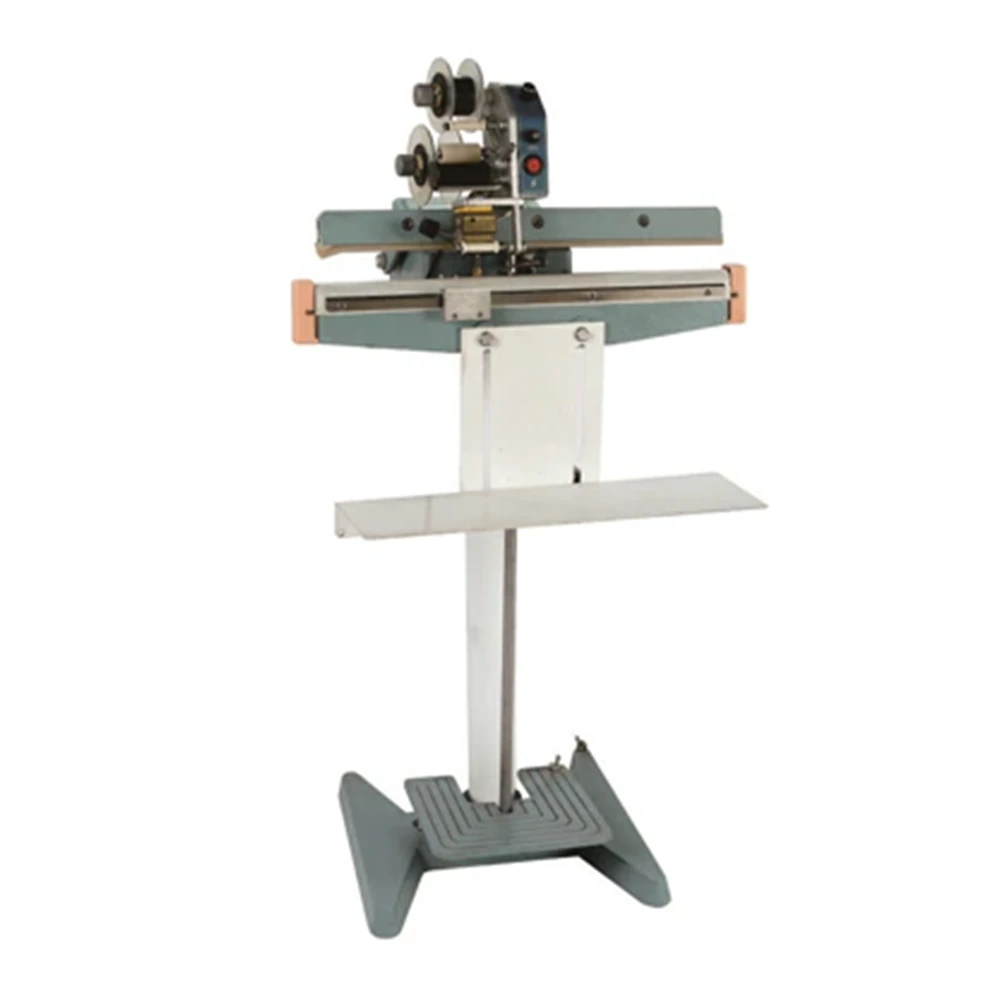

PFS-350DM Foot-Operated Coding Sealing Machine
Press the pedal once and the bag is sealed and coded. The PFS-DM range pairs an impulse sealing jaw with a coding die, so the date or batch number is pressed into the seal as the film melts. Four seal bar lengths run from 350 mm to 800 mm, with pulse power from 1500 W to 2100 W, all built with CE certification.
350–800mmSeal bar length
1500–2100WPulse power
Seal + codeOne pedal stroke
CECertified range
Overview
One Stroke Closes the Bag and Dates It
On short runs and awkward packs, a pedal sealer beats a belt machine because the operator controls the rhythm. Adding a coding die to the same jaw means the two jobs that used to need two passes now happen together, with no code stamped crooked on an already-set seal.
- Seal and code togetherThe heated jaw melts the film while the die presses the date or batch number into the seal.
- Pulse heatingCurrent flows only during the stroke, so there is no hot bar waiting between packs and no idle energy use.
- Four bar sizes350, 450, 600 and 800 mm bars cover everything from small pouches to long film bags.
- CE certifiedThe range is built and certified to CE requirements for sale into regulated markets.
One Stroke
What Happens Inside a Single Pedal Press
The whole working cycle is short enough that the operator's hands never leave the bag.
01
Position
The operator lays the bag mouth across the jaw with both hands, which is why the work is done by foot rather than by hand.
02
Clamp
Pressing the pedal closes the jaw and holds the film flat under the sealing bar and the coding die.
03
Pulse
Current flows through the element for a fraction of a second, melting the film while the die presses the code into it.
04
Release
Releasing the pedal opens the jaw, the seal sets immediately, and the next bag can be positioned.
Bar Sizes & Power
Pick the Bar by the Widest Bag You Run
Bar length sets the longest seal possible in one stroke. Power rises with the bar, because a longer element needs more current to reach temperature evenly.
| Model | Seal Size | Power | Dimensions | Gross Weight |
|---|---|---|---|---|
| PFS-350DM | 350 mm | 1500 W | 880 × 550 × 250 mm | 21 kg |
| PFS-450DM | 450 mm | 1700 W | 880 × 550 × 250 mm | 23 kg |
| PFS-600DM | 600 mm | 1900 W | 880 × 550 × 250 mm | 27 kg |
| PFS-800DM | 800 mm | 2100 W | 720 × 550 × 250 mm | 28 kg |
| Power supply | AC110–220V / 50–60 Hz across the range | |||
| Heating | Electrical pulse heating, one stroke per seal | |||
Select the model by the widest bag in your range. All four models share the same coding function; only the bar length and power differ.
Technical Data
PFS-350DM Datasheet
The figures below are taken directly from the model datasheet.
| Parameter | PFS-350DM |
|---|---|
| Model Family | PFS-350DM / 450DM / 600DM / 800DM |
| Power Supply | AC110–220V / 50–60 Hz |
| Power Consumption | 1500 W |
| Sealing Size | 350 mm |
| Dimensions | 880 × 550 × 250 mm |
| Gross Weight | 21 kg |
| Heating Method | Electrical pulse heating |
| Operation | Foot pedal, seal and code in one stroke |
| Coding | Date and batch code embossed during sealing |
| Certification | CE |
Coding type, embossing depth and voltage are confirmed against your bag before production. Type characters and sealing elements are supplied as consumables.
Advantages
Why Operators Like a Pedal Sealer
The machine does not decide the pace; the operator does. That is a real advantage on mixed batches.
Hands Stay Free
The operator positions the bag with both hands and works the pedal with a foot, which speeds up awkward or heavy packs.
Energy on Demand
Pulse heating draws current only during the sealing stroke, so the machine is not heating the workshop between bags.
Fast Changeover
Switching to a different bag size is a matter of loading different coding type, with no belt setting to re-tune.
Even Seal Line
Pulse timing is adjusted to the film, so thin film does not scorch and thick film still welds through.
Certified Build
CE certification means the machine meets the electrical and safety requirements of regulated markets.
Simple Consumables
Heating elements, high-temperature cloth and coding type are the only wear items, and all are easy to change.
Key Numbers
The PFS-350DM in Four Figures
350mmSeal bar length
1500WPulse power
21kgGross weight
CECertified range
Applications
Sectors Using the PFS-DM Range
Any trade that seals film bags in batches and has to print a date on the same pack.
Food & Beverage
Dry food, snacks, tea and specialty packs sealed and dated in a single pedal stroke.
Pharmaceutical & Chemical
Film and foil packs where a legible batch or expiry code must be pressed into the seal.
Light Industry & Electronics
Components, hardware and small parts bagged and closed with a traceable date code.
Ordering & Support
What Comes With Every PFS-DM Machine
Shipping
Double-layer packing, shipped by express, air or sea and trackable from the factory door.
Payment
T/T bank transfer and other agreed methods, with terms confirmed on the proforma invoice.
Warranty
A 2-year warranty covers parts and labour, with elements, cloth and type supplied quickly.
Setup Help
Guidance on pulse time, coding position and the right bar size for your widest bag.
- Lead timeAbout 5 working days for standard builds, plus roughly 4–6 working days in transit by express.
- Volume termsAgreed per order against quantity and destination — send your target volume and port.
- OEM & ODMNameplate and coding content can carry your brand.
- Sample testSend your film and we will confirm the pulse setting and code depth.
FAQ
PFS-350DM Questions
A plain impulse sealer only closes the jaw. The PFS-DM range adds a coding die on the same jaw, so one pedal stroke melts the film and presses a date or batch code into the seal at the same time. There is no second operation and no second machine.
Four sizes are offered: 350 mm, 450 mm, 600 mm and 800 mm. The bar sets the longest bag that can be sealed in one stroke, so match it to the widest bag you run, not to the average. Power rises with bar length, from 1500 W on the 350 mm model to 2100 W on the 800 mm model.
Pulse heating sends current through the element only during the sealing stroke and holds the jaws closed for a short, controlled time. That keeps the operator safe between strokes, saves energy, and gives a clean seal on thick or heat-sensitive film that would scorch under a permanently hot bar.
It seals the thermoplastic films used for bag sealing and bag making across food, pharmaceutical, chemical, light industrial and electronic component packing. Thicker films simply need a longer pulse time, so one machine covers a wide range of gauges.
The pedal design suits batch work and where the operator controls the pace, which is often faster than a continuous machine on short runs and awkward bag shapes. Because the jaw only heats on demand, there is no idle heat loss between packs.
The range carries CE certification. Each machine is assembled and tested before dispatch and ships in double-layer packing. Standard production is about 5 working days with express transit of roughly 4 to 6 working days. Heating elements, high-temperature cloth and coding type are supplied as consumables.
