Bench Continuous Sealer
SF-150W Horizontal Continuous Sealing Machine
The workhorse of small and medium packing rooms. The SF-150W runs the bag mouth between two moving belts, sealing continuously at 0–13 m/min with an adjustable seal width of 0–14 mm and a digital thermostat reaching 300 °C. Seal length is unlimited, so any bag size fits, and an optional print and count device finishes the pack in the same pass.
0–13m/minSealing speed
0–14mmAdjustable width
0–300°CDigital control
39Print characters
Technical Data
SF-150W Datasheet
All figures are taken from the machine datasheet and listed exactly as supplied.
| Parameter | SF-150W |
|---|---|
| Power Supply | 220 ±10V, 50 Hz |
| Total Power | 500 W |
| Sealing Speed | 0–13 m/min, adjustable |
| Sealing Width | 0–14 mm, adjustable |
| Temperature Range | 0–300 °C |
| Sealing Length | Unlimited |
| Print Characters | Up to 39 |
| Counter | 4-digit |
| Dimensions (horizontal) | L850 × W420 × H320 mm |
| Heating Element | Full copper heating and cooling blocks |
| Insulation | White ceramic pad, roughly 30% less heat loss to the body |
| Body | One-piece laser-cut frame, no weld seams, R7 edges |
| Drive | Imported Dutch engineering nylon gears |
| Options | Print and count device, vertical configuration |
The same platform is offered in horizontal, vertical and floor-standing form; this page covers the bench horizontal build. Configure the version that matches your product before ordering.
How It Seals
Continuous Motion Beats Repeated Clamping
An impulse sealer makes one bag per cycle and waits for the jaw to close and open. A continuous sealer never stops: the bag mouth rides between the belts while heat, cooling and pressure are applied in sequence along the path.
Belt Transport

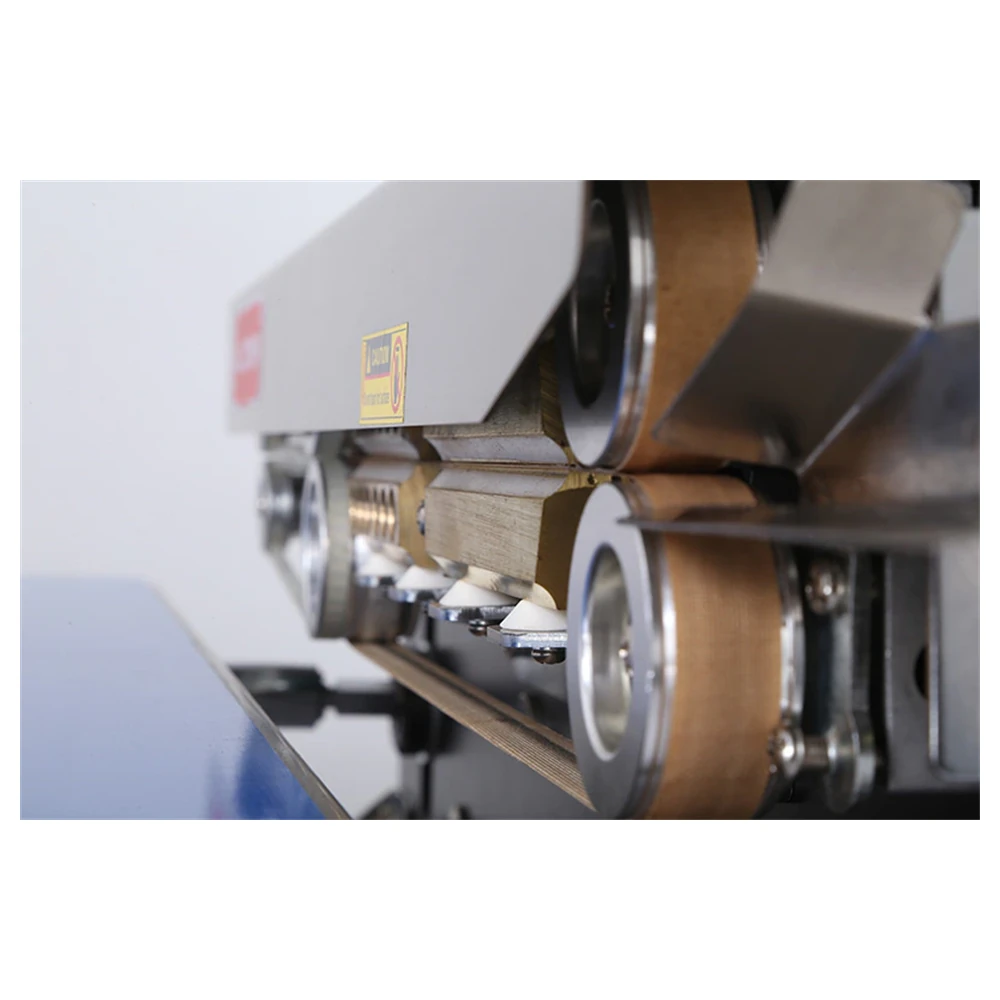

Two moving belts grip the bag mouth and carry it at a set speed, so a light pouch and a full bag travel at the same rate.
Heat & Cool

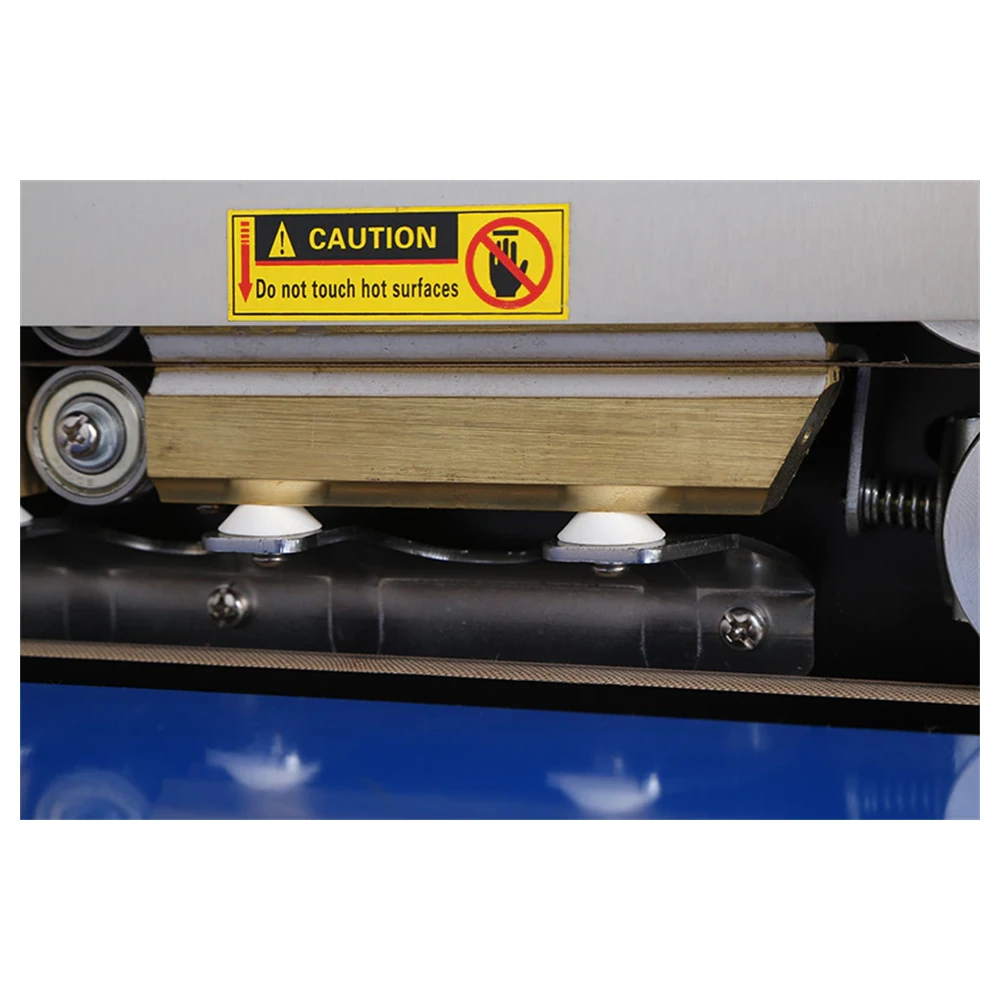

Copper heating and cooling blocks hold the set temperature in one zone and pull it down in the next so the film sets flat.
Ready to Print
An optional print and count unit adds the factory name, trademark, date, shelf life or batch data in the same pass.
Working Principle
Four Stages Along the Belt
Continuous sealing is a sequence rather than a single action, and each stage has its own effect on the finished seal.
01
Grip
Two moving belts take the bag mouth and carry it at the set speed, holding the film flat and square to the heater.
02
Heat
The copper heating block at up to 300 °C softens the thermoplastic plies through the sealing belt.
03
Cool
The copper cooling block pulls the temperature down so the fused film sets without stretching or wrinkling.
04
Print & Count
The optional print unit adds the name, trademark, date or batch code of up to 39 characters, and the counter records output.
Width & Speed Matrix
Choosing Seal Width Against Belt Speed
Wider seals need more dwell time under the heater, so belt speed has to come down. This is the trade-off that decides your real output.
| Seal Width | Typical Bag | Suggested Belt Speed | Notes |
|---|---|---|---|
| 0–4 mm | Light pouches, sachets | 11–13 m/min | Highest throughput, minimum film stress |
| 5–8 mm | Standard retail bags | 8–11 m/min | Balanced seal strength and output |
| 9–11 mm | Heavier goods, dry foods | 6–8 m/min | More peel strength for dense fills |
| 12–14 mm | Industrial and chemical packs | 4–6 m/min | Widest seal, strongest joint |
Belt speeds are practical starting values for the SF-150W and depend on film coating and ambient temperature. Confirm the final setting on your own film.
Build Quality
Small Details, Long Service
Continuous sealers live with heat and vibration for years. The SF-150W is built so that neither becomes a problem.
- Ceramic insulationA white ceramic pad cuts about 30% of the heat that would otherwise reach the electronics, extending their life.
- Copper heat pathFull copper heating and cooling blocks move energy in and out faster, holding the set point more accurately.
- One-piece bodyA laser-cut frame without welds raises torsional stiffness by roughly 50% and keeps the belts and heater aligned.

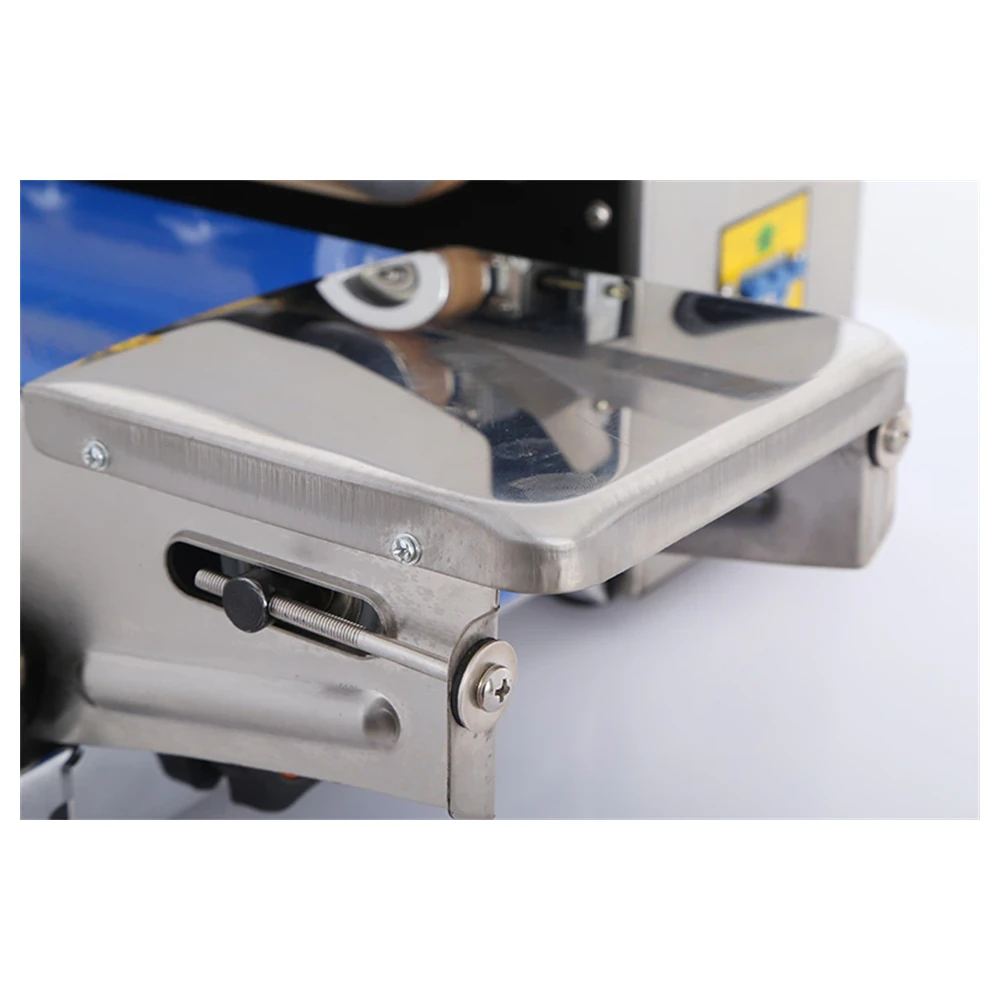

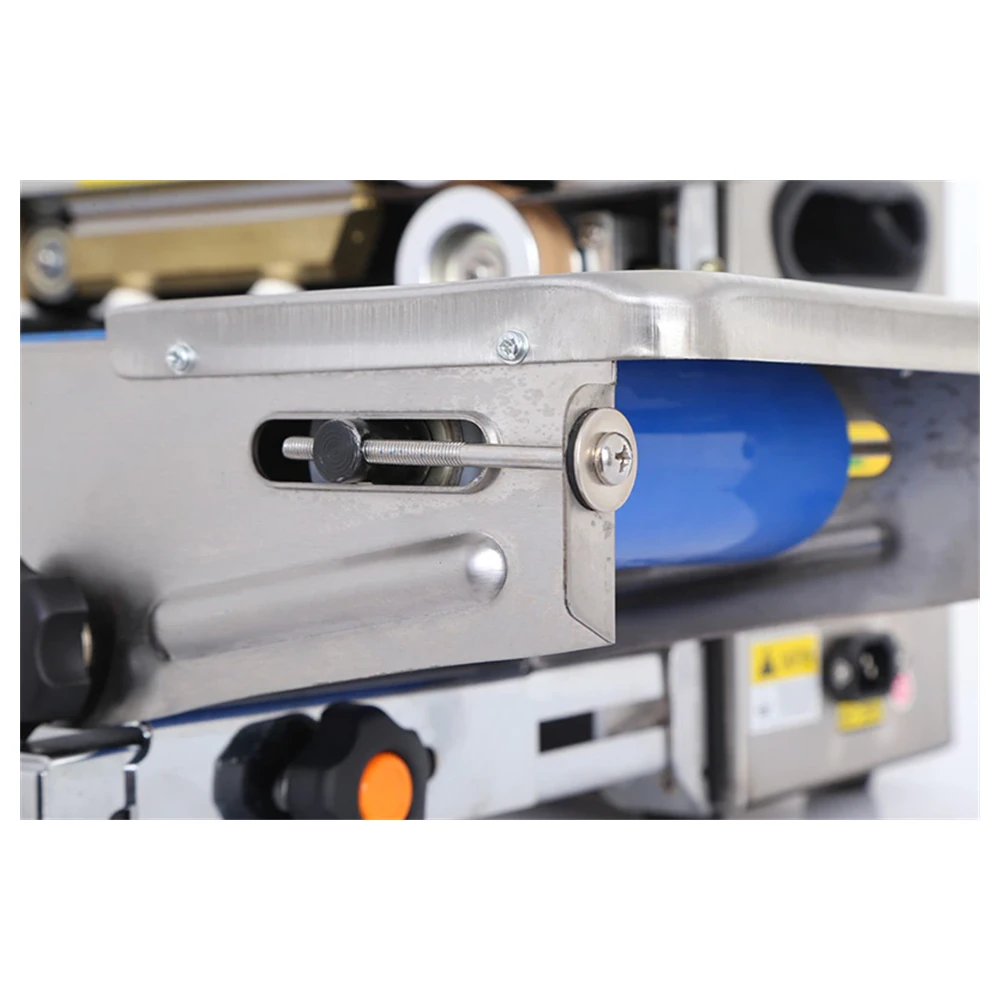

- Safe by designRounded support platform, R7 edge treatment and stainless steel fasteners throughout reduce the risk of cuts and loose parts.

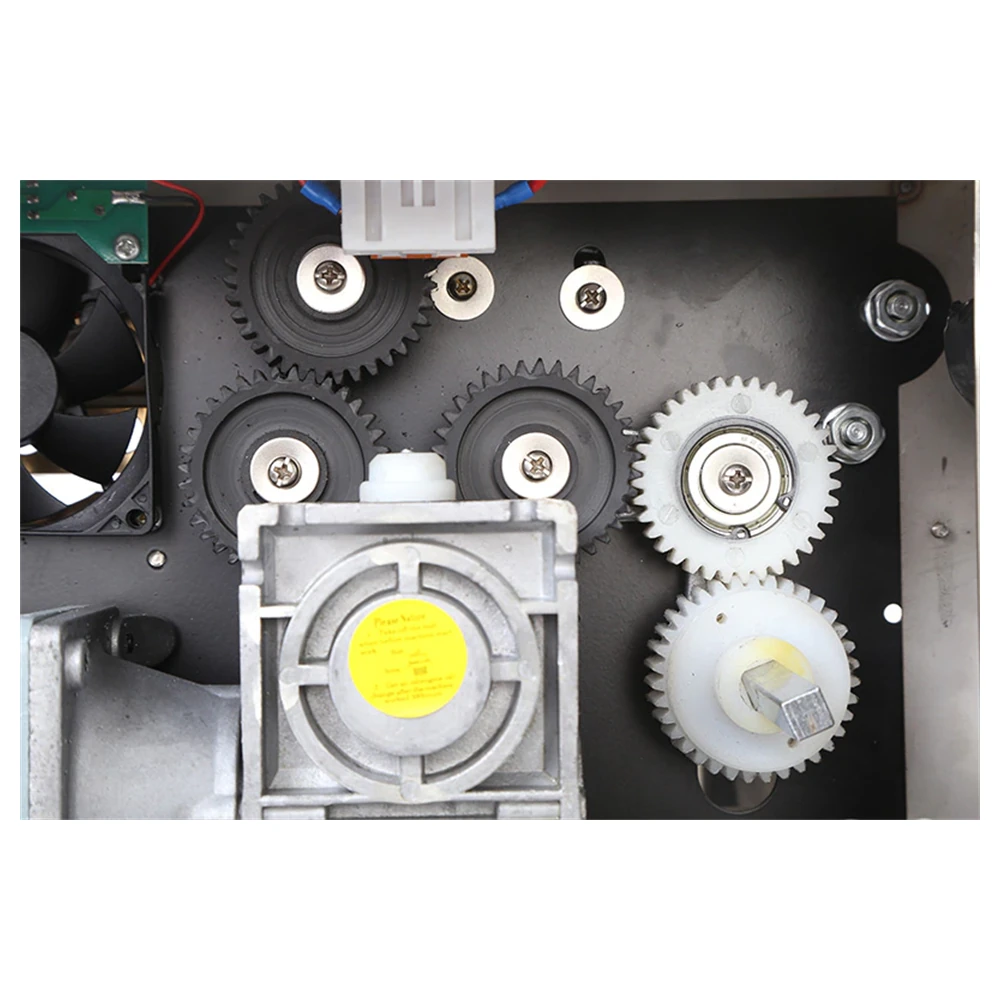

- Quiet gearingImported Dutch engineering nylon gears run smoothly and quietly, with less wear than metal-to-metal gears.
Key Numbers
Four Figures That Set Expectations
13m/minMaximum belt speed
14mmMaximum seal width
300°CTop temperature
500WTotal power draw
Applications
One Bench Sealer, Many Trades
The SF-150W is chosen wherever bags are packed in batches rather than on a high-speed line, from corner shops to laboratories.
Food & Local Produce
Dried fruit, nuts, tea, coffee, seeds and specialty foods in film bags sealed and printed in one step.
Pharmaceutical & Laboratory
Sample bags, reagents and small components where a straight seal and a legible code are both required.
Cosmetics, Electrical & Sundries
Everyday retail packs for household goods, electrical components and general merchandise.
Ordering & Support
What Comes With Every SF-150W
Shipping
Air express, air freight and sea freight, trackable from the factory door to your site.
Payment
T/T bank transfer and other agreed methods, with Incoterms confirmed on the proforma invoice.
Warranty
A 2-year warranty covers parts and labour, with fast supply of belts, elements and cloth.
Packaging
Double-layer packing with a thick outer carton and foam cushions that stop movement in transit.
- Lead timeAbout 5 working days for standard builds, plus roughly 4–6 working days in transit by express.
- Volume termsAgreed per order against quantity and destination — send your target volume and port.
- OEM & ODMFrame colour, nameplate and imprint content can carry your brand.
- Sample testSend your film and we will return the sealed sample and the settings we used.
FAQ
SF-150W Questions
Instead of a fixed jaw that clamps one bag at a time, the SF-150W carries the bag mouth between two moving belts. The seal is made continuously along the whole length of the bag, so nothing limits how long the bag or the run can be, and bags can be sealed and cut from a continuous film tube.
Yes. The sealing width adjusts from 0 to 14 mm, so you can set a narrow seal for light pouches or a wide seal for heavier bags that need more peel strength. The width is set mechanically and does not require changing the heating element.

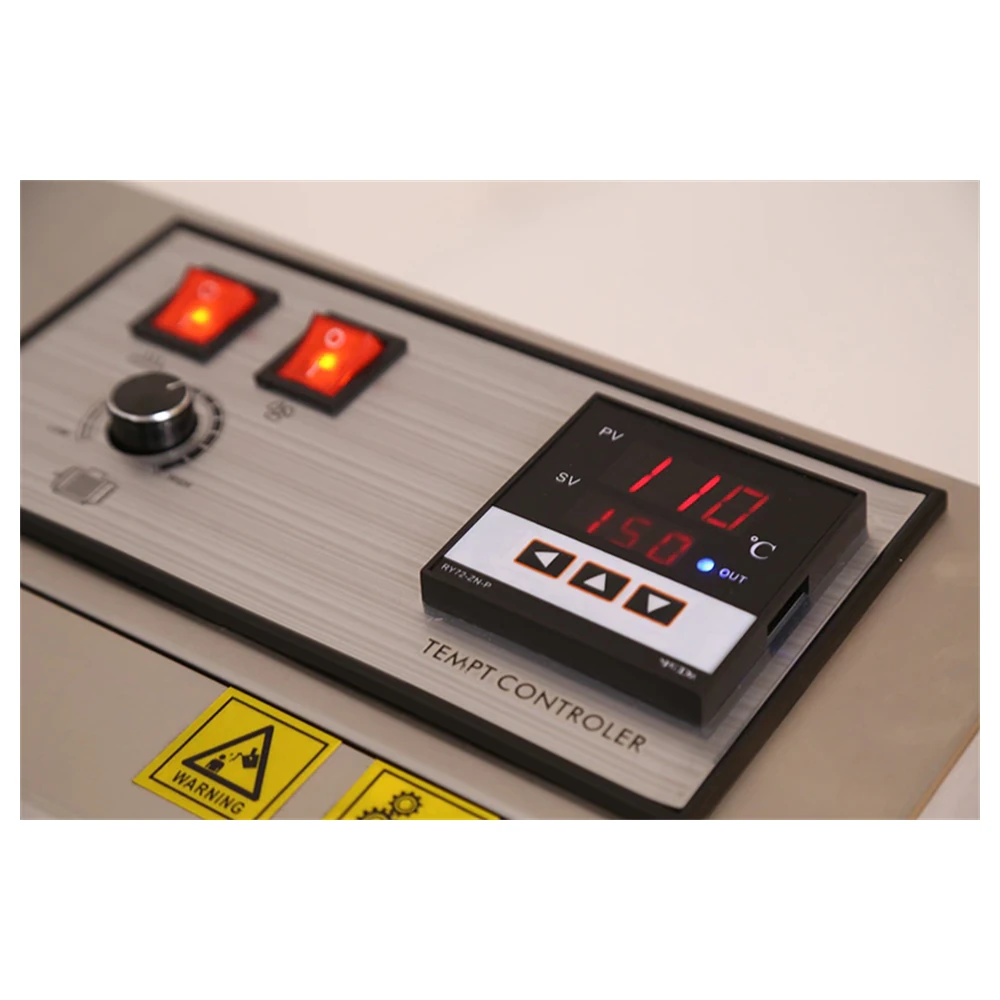

A high-precision digital thermostat holds the seal zone between 0 and 300 C. Full copper heating and cooling blocks move heat in and out quickly, and a white ceramic insulation pad cuts roughly 30 percent of the heat that would otherwise reach the electronics, which keeps the set point stable over a long shift.
It seals the plastic films used for food, pharmaceutical, cosmetic, local produce, chemical, electrical component and seed packing, and can also make bags from film tube. It is used horizontally for dry products and, in the vertical configuration of the same platform, for filling and sealing liquids.
It can be fitted with a printing and counting device that prints the factory name, trademark, production date, shelf life or batch number of up to 39 characters while sealing, and a 4-digit counter registers output. Sealing and printing complete in one pass.
The body is cut from a single piece with no weld seams, which raises torsional stiffness by about 50 percent compared with a welded frame. That keeps the belts and heater aligned under load, so the seal line stays straight even when heavy bags are run all day.
The machine is assembled and tested before dispatch and ships in a double-layer carton with foam cushions. Standard production is about 5 working days with express transit of roughly 4 to 6 working days. Heating elements, sealing belts and high-temperature cloth are available as spares.
